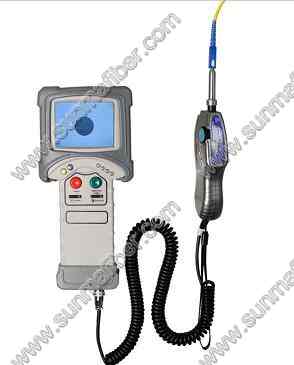

ST-70 includes FO-70A Probe and 3.5inch display for the whole set. With high performance of quick check and consist alignment, it displays enlarged fiber end face image of high definition and have scratches/dents/chips/dust easily figured out without seconds. It offers an effective and prac
Specifications：

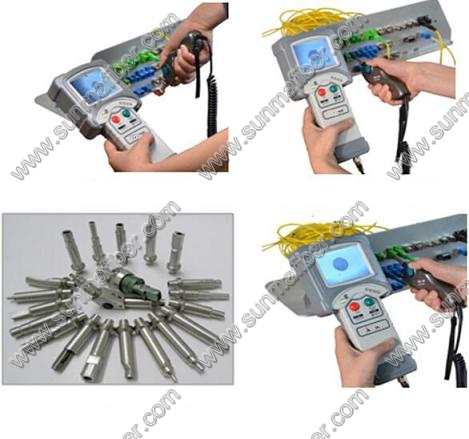

| ST-70 Fiber Optic Video Microscope ST-70 includes ST-700A Probe and 3.5inch display for the whole set. With high performance of quick check and consist alignment, it displays enlarged fiber end face image of high definition and have scratches/dents/chips/dust easily figured out without seconds. It offers an effective and practical solution to the network maintainance work or QA production of fiber kits by manufacturers. ST-70 probe is of a high quality inspection probe. Compared with the traditional tools, its unique single-way of focus control greatly simplifies the work. No matter left or right hand, back or forth operation, it can quickly get the end face inspected and have image displayed easily in one-way without seconds. The wheel design of focus control also help improve the efficiency for operation, the magnet of the display assists display be hung firmly on the machine room for more convenience, LED quality of source power assures a sharper and clearer image for scratches/dents/chips check, brightness/contrast control get the image easily adjusted, all these guarantee the user a quicker and learer fiber end face inspection. The probe can also be integrated with both digital and analog functions as 70B probe for dual or triple use to connect either laptop, display or OTDR, which offers a versatility and configurability for the greatest convenience use. Plus, precise cone design of stainless steel tips make 35 additional tips available to the probes for assorted connectors inspection such as LC-APC in-adpator/E2000-APC in-adaptor, MPO in-apdatpr etc., special connectors and lengthened/angled tips help solve more complicated on-site inspection of back of patch panel or hard-to-access places. Tips can also be customized to meet different clients needs. Monitors Introduction According to actual inspection requirements, there are three type monitors normally can be required to work with the Fiber Inspection Probe. Below are the details of those monitors.  1) H Type (3.5inch Display) Magnification200x Resolution: 1um Display typeTFT-LCD25000pixel Image diameter25 mm Brightness and lightness adjustable, convenient for observing. Battery Life: 5~6 hours Powerlithium battery and battery charger 110~220V / 12V Output port: USB2.0 (Optional) 2) D Type (5.6 inch Display) Magnification360x Image diameter45 mm Brightness and lightness adjustable, convenient for observing. Battery Life: 3 hours Power SupplyBattery and AC power supply can be alternative 3) T-Type (9 inch Monitor) The image which detected by Fiber Inspection Probe can be transmitted to desktop monitor by DM06 multi-functional convertor, in order to make the image more clearly. The T type Fiber Microscope is the most applicable in the Optical Components Producing and Inspection! Magnification600x Image diameter81 mm Power Supply AC Power Supply Adapter The main functions of DM06: 1. Input port of Fiber Video Microscope 2. Connection Port of DC power 3. Video output port 4. Input port of Video (Such as desktop Microscope) 5. Switch Button  ST-70 Portable Microscope.pdf Standard Configuration  Optional Items:  |
