Furukawa Fitel S177A Fusion Splicer

Furukawa Fitel S177A Fusion Splicer

Most compact, lightweight core-alignment splicer in the industry! New graphical user interface (GUI) to enhance ease-of-use. Transreflective LCD allows clear view even in direct sunlight

 Specifications:

Furukawa FITEL S177A

Most compact, lightweight core-alignment splicer in the industry! New graphical user interface (GUI) to enhance ease-of-use. Transreflective LCD allows clear view even in direct sunlight.

Specifications:
 Splicing Method  Core-Alignment
 Applicable Single Fiber  SMF, MMF, DSF, NZDSF, EDF
 Average Insertion Loss  SMF (0.02dB), MMF (0.01dB), DSF (0.04dB), NZDSF (0.03dB)
 Splice Time  9-seconds
 Heat Time  37-second (40mm), 51-second (60mm)
 Splice/Heat Programs  150 available / 12 available
 Cleave Length  5 - 16mm (250μm), 10 or 16mm (900μm)
 Dimension/Weight  130W x 260D x 137H (mm) / 2.20 kg (4.85 lbs)
 [weight  including battery]
 Splice Memory  2000 splices
 Operating Enviroment  0 - 4,000m, -10 to +50 ℃ and 90% at 38 ℃
 Data Output  USB 1.1
 Battery Life  Internal - 70 splice/heat cycles; External (option) - 350
splice/heat cycles
 Power AC Input: 85 to 264VAC (50/60Hz), DC Input: 11 to 17VDC,
Battery: Li-ion

Seamless Splicing from Trunk to FTTx :

     Head Office: Europe: North & South America: South East Asia,The FITEL S177A ushers
 in a whole new range of applications for core-alignment splicing: It delivers the same
 precision, accuracy, and automated functionality of a conventional core-alignment unit,
 but with the-speed, portability, and covenience of a hand-held splicer. The S177A
becomes your versatile best choice for FTTx, LAN, backbone, or long-haul installations.

Compact, Lightweight Body :

At nearly half the weight and size of FITELs standard core-alignment unit, the S177A
weighs only 2.2kgs (4.85 pounds)-making it the first hand-held and most compact,
 lightweight core-aligning splicerin the industry. The T-shaped body design, measuring
 just 5 inches across, easily accommodates short fiber lengths. The magnesium alloy
canopy and top base provide the rugged strength required for field operations. Highly
 accurate, it easily handles diverse applications - from trunk splicing to FTTx.

Standard Package:
Model P/N Description
   S177A S177-X-A-0001 Splicer Body
S177-X-S-0002 Spare Electrodes
S177-X-A-0003 Carrying Case
S943 Internal Battery
S957 AC Adapter
D5111 Electrode Cleaning Disk
S177-X-S-0004 Manual
S325A High Precision CLeaver

Optional Accessories
P/N Description
S177-X-S-0005 Cooling Tray
S177-X-S-0006 USB Cord
S177-X-S-0007 Fiber Holder Mount
S707-080 80μm Fiber Holder
S707-250 250μm Fiber Holder
S707-900 900μm Fiber Holder
S210 Furukawa Fiber Stripper
S211 Miller Stripper
S945 Large Capacity External Battery

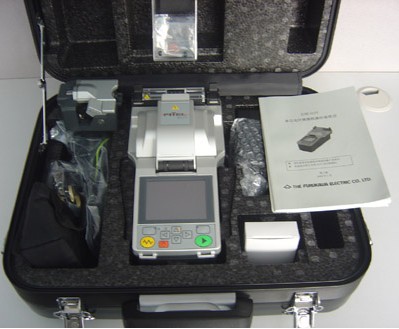

Our Fitel S177A fusion splicer standard package:
a) Main body, Model S177-x-a-0001, - 1 pc;
b) AC Adapter, Model: S957- 1 pc;
c) Internal Battery Model: S943 - 1 pc;
d) Spare electrode Model: S177-X-S-0002 -1pair;
e) Carrying case Model: S177-X-A-0003 -1pc;
h) Instruction manual Model: S177-X-S-0004 - 1pc;
j) High precision fiber cleaver Model: S325A - 1 pc;
h) Electrode Cleaning Disk Model: D5III-1pc;
i) Miller Stripper Model:FO103S - 1PC
