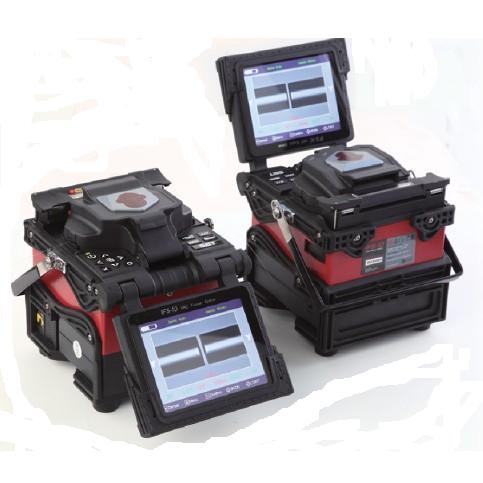

INNO IFS-10 ARC Fusion Splicer

INNO IFS-10 ARC Fusion Splicer

?WATERPROOF, DUSTPROOF, ANTI-SHOCK, WINDPROOF ?Friendly smart GUI ?Large Battery capacity : 350 times ?Even Splice Loss : 0.01dB more than 70%

 Specifications:

INNO IFS-10 ARC Fusion Splicer

- 2.2kg weight (without Battery)
- Splicing Method: DACAS
   Digital Analysis Core Alignment System
- Harsh weather conditions adaptability
- Friendly smart GUI
- Large Battery capacity: 350 times
- Quick optimize menu
- High precision splicing
- USB master port, easy to upgrade software
- Operate in Bi-directional view

- 2.2KG (without battery), light and handy, user friendly, easy to operate
- Splicing Method: DACAS (Digital Analysis Core Alignment System)
- Applicable fiber
  SM(ITU-TU.652), MM(ITU-TU.651), DS(ITU-T G.653),NZDS(ITU-T G.655), G657A, G657B
- Average loss: SM(0,02dB), MM(0.01dB), DS(0.04dB), NZDS(0.04dB)
- Return loss >> 60 dB
- Splice time: SM fusion average 9s / SM Quick Mode 7S
- Cleaved length: The fiber whose coat-diameter is less than 0.25mm: 8-16mm
  The fiber whose coat-diameter is larger than 0.25mm: least 16mm
- Operating environment: elevation 0-5000meter, 95% relative humidity, -10~50癈
- Magnification: XY style: 150 power, X/Y: 300 power
- Monitor: 2 CCD camera system, 5 inch LCD
- Splice Programs: 100 user mode
- Storage Condition: - 40 to 80癈, ~95% RH
- Coating Diameter: 100-1000um
- Cladding Diameter: 80-150um
- Splice memory: max 2000 records
- Fiber Display: X/Y or XY, single X.Y
- Pull test: 1.96~2.25N (standard)
- Heating programs: Preset 10 heating modes
- Heating time: FP-03 typical heating time 30s
- Protection sleeve: 60mm, 40mm
- Battery: Typical full cycle 350 times
- Power supply: AC 100-240V input or  DC 10-15V
- Data output: USB master device and COM
- Wind protection: The max wind speed 15m/s
- Size: 155 x 130 x 143mm(excluding rubber bumper)
- Electrode Lifespan: more than 2,500 times
- Auto Heating
