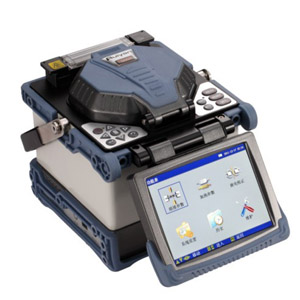

ST-600 Fiber Fusion Splicer

ST-600 Fiber Fusion Splicer

l PAS image digital processing system,core or clad alignment is optional;l The arc is calibrated by the environmental parameters as temperature and pressure;l Variety display group,the Maximum image magnification is 290; l Typical splicing time is 8 second,28 seconds heating;l Metro style GU

 Specifications:

Sunma ST-600 Fusion Splicer

The machine employs high-speed image processing technology and special positioning technology, allowing the total process of fusion splicing to be finished within 10 seconds. Large-screen LCD clearly demonstrates every stage of optical-fiber fusion splicing. As the machine is compact in size, light in weight, it is ideal to work in outdoor environment. In addition, it is easy to operate, fuses fast, with low fusion loss, especially suitable for the construction and maintenance of the optical-fiber works built in a wide range of sectors including telecommunications, broadcast & TV, railway, petrochem, electricity, army, police, as well as teaching and research of scientific institutes. In order to finish the fusion operations more accurately, please thoroughly read this Manual.

Features:

Standard Box Packing:


Big Yellow Box Packing:


Digital fusion splicer with automatic focus functionFiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.1 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface

Specefications



Model ST-600
Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length 10 ~16mm (Coating diameter<250祄);16mm(Coating diameter250~1000祄)
Fiber diameter Cladding diameter:80 ~150祄 , Coating diameter:100 ~1000祄
Auto focusing Available
Fiber aligning method Core aligning, clad aligning, manual aligning
Average splice loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time Typical 9 sec,with standard SM fiber
Heating time Typical 36 sec
Applicable sleeves 60mm, 40mm and a series of micro sleeves
Tension test 2N(option)
Electrode life 5000
Battery capacity Typical 400 cycles (splice and heat)
Monitor 5.1 inch TFT color monitor
Terminal USB 1.1 and VGA ,   software upgrade via USB interface
Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Splicing mode Auto ,normal
Fiber cleaved angle threshold set 0.1 ~ 10.0 oC , 0.1oCstep
Power supply Li-battery 11.8V  , AC100-240V  DC12.6V/5.0A
Dimension L169*W152*H155mm
weight 2.4kg   2.9kg(battery)
