AirStream Cable Blowing Machine

AirStream Cable Blowing Machine

The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single person operation with safe, easy to operate ergonomic controls combines with

 Specifications:

The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single person operation with safe, easy to operate ergonomic controls combines with

low maintenance and high reliability to form the machine’s key features. The Air Stream is adjustable to suit a wide range of cable diameters 2.5-11mm.

Main Features
Automatic Cable centralizing
Synchronous high grip profiled compliant drive belts
Tabletop design with ergonomic controls for ease of operation
Forward and reverse
Variable torque and speed controls
Digital servo motor drive system
Single person operation
Digital cable speed and length monitoring
Auto stop facility when air stone fitted
Integral air valve and pressure gauge
Easy cable threading
Polycarbonate safety guarding
Lightweight and compact
Low maintenance
Low noise levels
Travel case

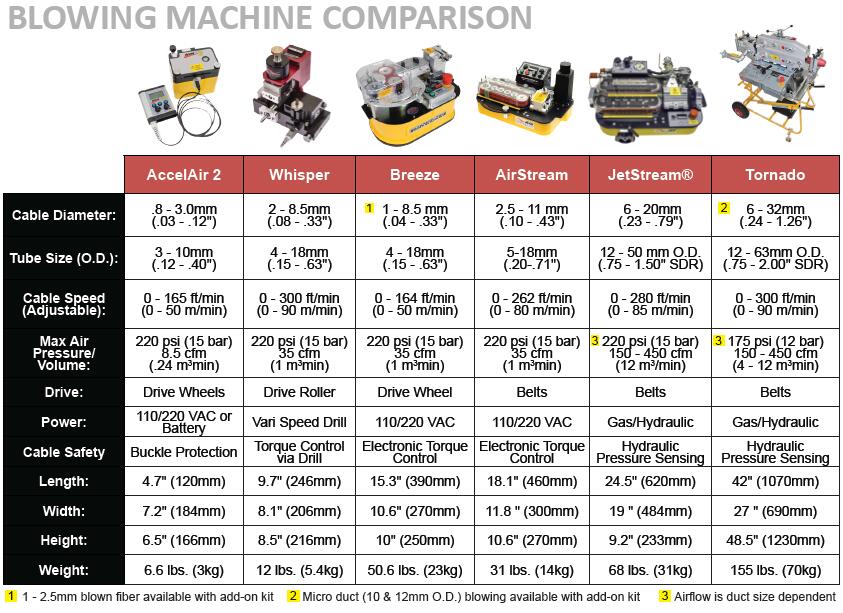

Specifications:
Cable Diameter: 2.5 to 11mm
Tube Size (Outside Dia): 5 to 18mm
Cable Speed (Adjustable): 0-260 ft/min (0-80m/min)
Air Pressure: 145-215 psi (10-15 Bar)
Power Requirement: 110/220 Volt AC
Width: 11.8” (300mm)
Length: 18” (460mm)
Height: 10.6” (270mm)
Net Weight: 31 lbs. (14kg)
AirStream Cable Blowing Machine
P/N 89300 Weight: 31 lbs (14 kgs)
see video of the AirStream in action
Download High Res Photo
Configuration
Cable Seal ID Chart Operating Manual

Air Compressor for Micro Fiber Cable Blowing Machines
The Air Compressor is designed specifically for use with our Micro Fiber Cable Blowing Machines. This reliable & efficient screw compressor, powered by a gasoline engine, provides a maximum working pressure of 220 psi (15 bar) with 35.3cfm (1000 litres/m) flow.

The compressor is modified to include an after-cooler and water separator. The output air is filtered and conditioned to optimize the performance of our micro fiber cable blowing machines. The compressor package includes a 50 foot 3/4" diameter air hose for connection to the microfiber cable blowing machine.
Engine: Honda 21 hp
Fuel Cap.: 5 gal (20 liters)
Length: 42" (1070 mm)
Width: 31" (800 mm)
Height: 30" (780 mm)
Weight: 487 lbs. (221 kg)
Micro Fiber Cable Blowing Air Compressor
P/N 89011 Weight: 487 lbs. (221 kgs)
