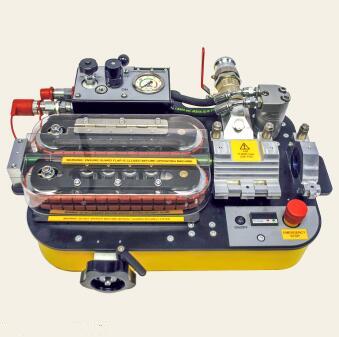

The JetStream has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32 cc hydraulic motor, powered by a supplied power pack with oil cooler. The electronic monitoring s
Specifications:
The JetStream has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32 cc hydraulic motor, powered by a supplied power pack with oil cooler. The electronic monitoring system provides read-out of speed and distance, helps protect against duct obstructions and includes an emergency stop. The JetStream is adjustable to suit a wide range of cable diameters .23-.79 in (6-20 mm), and duct diameters of .75-1.50 in SDR (12 mm-50 mm OD). Main Features Automatic cable centralizing Synchronous high grip profiled compliant drive belts Tabletop design Variable speed controls Digital cable speed and length monitoring Integral air valves and pressure gauges Polycarbonate safety guarding Low maintenance Wheeled travel case Tool kit Supplied Power Pack with oil cooler Power Pack Manual P/N 32800 Weight: 145 lbs. (66 kg) SDR Single Size Overblowing Junction Boxes - The GMP 1 1/4" , 1 1/2" and 2" SDR Cable Overblowing Junction Boxes have been designed to install a new cable or innerduct into an existing occupied innerduct (subject to space being available) P/N 89066 1 1/4"SDR P/N 89067 1 1/2" SDR Sonde Missile The sonde missile safely carries the Sonde P/N 88283 through a duct with compressed air in order to test the integrity of a duct or precisely locate a blockage. Sonde sold separately. Find more about sondes here Optional Inlet Hose 50 X 1 1/4" P/N 70554 Specifications: Cable Diameter: .23 to 79" (6-20 mm) Duct Size (Outside Dia): .75?1.50?SDR (12-50 mm OD) Cable Speed (Adjustable): 0-280 ft/min (0-85m/min) Air Pressure:215 psi (15 bar) 450 cfm (12 m3/min) Power Requirement: Supplied hydraulic power pack Width: 19?(484 mm) Length: 24.5?(620 mm) Height: 9.2?(233 mm) Machine only Net Weight: 68 lbs (31 kgs) JetStream?Cable Blowing Machine including case. P/N 89950 Weight: 132 lbs (60 kgs) JetStream Manual Configuration Cable Seal ID Chart Case has wheels and pull out handle for transportation 4 Lug Chicago Fitting Available for compressor. P/N 34387 Included adaptor with the Jetstream is a 4 lug Chicago fitting to a Cam and Groove hose coupling. |
