MPO is the high dense degree of optical fiber pre-connect system, which is generally use in three areas.The data centra application with high dense degree environment.The optical fiber to the building The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.Su
Specifications:
12 Fibers, MPO to MPO, 50um 10G OM3 Fiber, 12 Standard - MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

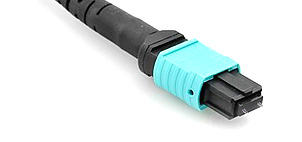

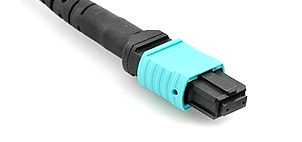

MPO Connector Types

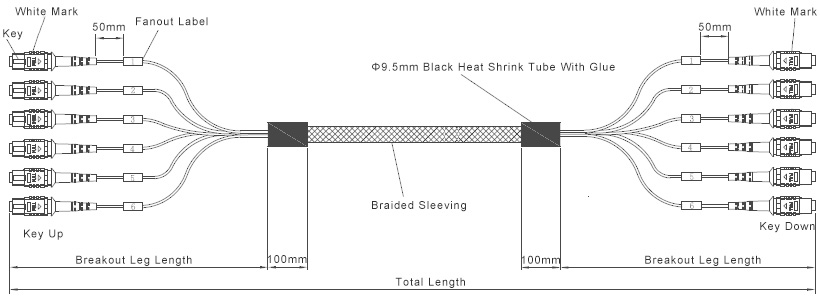

Pre-terminated MPO Technology-PolarityThe three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation. Assembly Structure Illustration

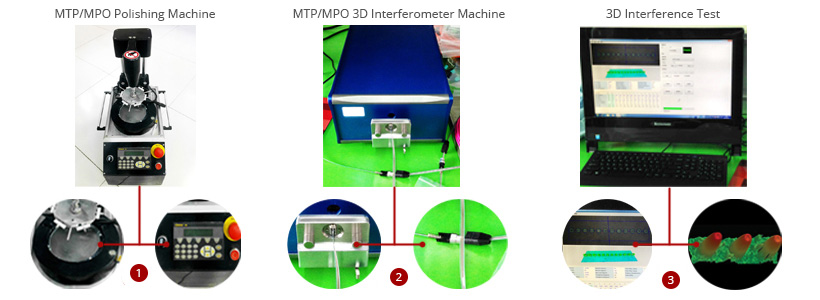

MTP/MPO Machinery & Testing Equipment
|
1 | Our adopt industrys leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules. |

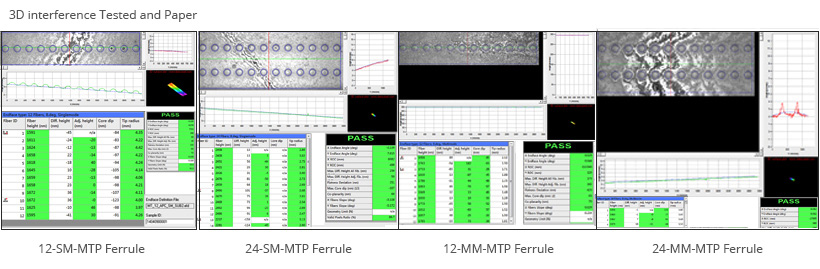

2 | The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards. |
3 | After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies. |
Parameter Reference
Type | Single mode | Single mode | Multi mode | |||
(APC polish) | (PC polish) | (PC polish) | ||||
Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
Fiber type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3 etc. | |||
Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
Low Loss | Low Loss | Low Loss | ||||
≤0.35 dB | ≤0.70 dB | ≤0.35 dB | ≤0.70 dB | ≤0.35dB | ≤0.60dB | |
Return Loss | ≥55 dB | ≥45 dB | ≥20 dB | |||
Durability | ≥200 times | ≥200 times | ≥200 times | |||
Operating Temperature | -10℃ ~ +70℃ | -10℃ ~ +70℃ | -10℃ ~ +70℃ | |||
Test Wavelength | 1310nm | 1310nm | 850nm |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m
Make To Order
Fiber Type | Cable Type | Fiber Count | Termination | Cable Length | Breakout Length (Inches) | Breakout Termination | Polarity | Lableing |
OM4 OM3 OS1/2 OM2 OM1 |
LSZH Bunch Riser Bunch LSZH Ribbon Riser Ribbon |
12 24 36 48 72 96 144 |
First Connector MPO Female MPO Male APC MPO Female APC MPO Male |
1~999 | 12~99 (36" is typical) |
0.9mm (standard) 2.0mm 3.0mm |
Style A Style B Style C |
Standard |
Second Connector MPO Female MPO Male APC MPO Female APC MPO Male |
