Special Wavelength FBT CouplerSplitter

: Fiber Splitter; Hits: 1302

Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24, 2x2, 2x4, 3x3 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc. We also offer FBT splitter

Specifications：

FBT Multimode Dual Window Fiber Coupler

As one of the key components for GPON FTTx networks, optical splitters can be p
laced in the Central Office or in one of the distribution points (outdoor or indoor)
because the FBT splitters are highly stable for multiport optical signal splitting
with low insertion loss. FBT couplers are designed for power splitting and tapping in
telecommunication equipment, CATV network, and test equipment

SunmaFiber Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5,
1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24, 2x2, 2x4, 3x3 configurations with single mode
or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST,
LC and E2000 etc.

Key Features

Low insertion loss
Low polarization dependent loss
High Return Loss
Optional Split Ratio 20/80, 40/60...(50/50 as default.)
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
High Quality Plastic ABS Box
Multimode Type: 62.5um/125 as default

Applications
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Amplifying, Monitoring System

Test Equipments

Order Information

For FBT Splitters, SunmaFiber provides a whole series of this kind customized for
specific applications:
a. Different coupling ratio can be customized according to your requirement.
b. Two out of the 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24, 2x2, 2x4, 3x3
configurations of splitters are available.
d. 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default.
Welcome to contact us for customized solutions.

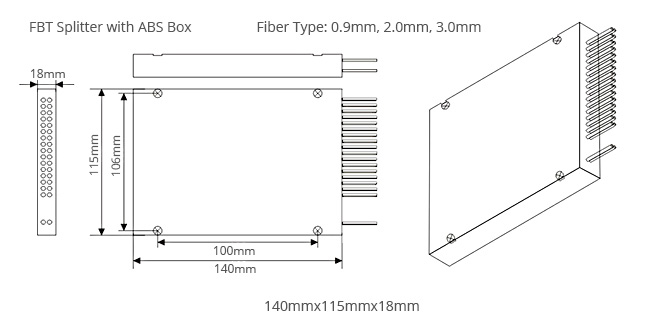

Mechanical Drawing

SunmaFiber offers cost-effective standards-based 1x24 FBT Splitter Multimode Dual Window Fiber
Splitter with ABS Box. As a 3rd party OEM manufacturer, our 1x24 FBT Splitter Multimode Dual
Window Fiber Splitter with ABS Box is delivered to worldwide from our factory directly, and they
are all based on thin film filter technology and metal bonding micro optics packaging. Whats more,
our 1x24 FBT Splitter Multimode Dual Window Fiber Splitter with ABS Box are tested in-house prior to
shipment to guarantee that they will arrive in perfect physical and working condition. Please contact
us at This email address is being protected from spambots. You need JavaScript enabled to view it. if you want to know more details.

Type	Special Wavelengths Coupler
Parameter
	P	A	P	A
Operating wavelength (nm)	630	780	830	850	980	1064
Operating bandwidth (nm)	±15
Coupling ratio	1/99~50/50
Fiber type	630		Hi780	Hi1060/OFM	Hi1060
BF05635-02
Insertion Loss	50/50	≤3.6	≤3.8	≤3.4	≤3.6
（dB）
Insertion Loss	40/60	≤4.7/2.8	≤4.9/3.0	≤4.4/2.6	≤4.7/2.8
（dB）
Insertion Loss	30/70	≤6.0/2.0	≤6.3/3.2	≤5.7/1.9	≤6.0/2.0
（dB）
Insertion Loss	20/80	≤8.0/1.3	≤8.4/1.5	≤7.6/1.2	≤8.0/1.3
（dB）
Insertion Loss	10/90	≤11.5/0.8	≤12.0/0.9	≤11.0/0.65	≤11.5/0.8
（dB）
Directivity( dB）	≥55
Operating temperature（℃）	-40 ~ +85

OperatingWavelength Note: **Other specifications can be made on customer request.(nm)
