C-Band Booster CATV Optical Amplifier

: Optical Amplifier; Hits: 1047

Specifications：

Booster Plug-in Card Type EDFA Optical Amplifier for CATV Applications

The plug-in card type EDFA usually works with Multiplex Managed Chassis, which can insert more EDFA cards to access multiple signals, for example, 4 EDFA cards can be inserted into 1U Multiplex Managed Chassis and 16 EDFA cards can be inserted into 4U Multiplex Managed Chassis. The specific plug-in design provides flexibility and convenience for EDFA application, achieving space efficiency with compact size. What’s more, the plug-in card type EDFA supports SNMP Network management via Ethernet port and RS232, RS485 through the USB port.

Features

CATV Booster Amplifier, extend analog CATV to suit long distance feeders or larger FTTH distribution systems within 1540~1560nm
Input power: –3~10dBm
Output power: 13dBm
APC, AGC, ATC and ACC control modes
Support RS232, RS485 (USB Port)
Support SNMP Network management Via Ethernet port
Low noise figure: typical is< 4.5dB
Fully Customizable Design
High stability and reliability
Easy to maintain and replace reserve parts
Space efficiency with compact size
Cost efficiency with pluggable type
Plug-in design, flexible and convenient
Easy to get cooling and effectively prolong the working life.
Application
FTTx system
LANs and MANs
Optical Distribution System
Analog & Digital CATV long distance transmission
Laboratory application
For video optical Transmission system & AM CATV
Military and industrial applications
Loss and Dispersion Compensation for Optical Fiber Networks
Rack mount optical amplify system

Fiber optic link amplification

Compatible With EDFA Chassis

1U Multiplex Managed Chassis can be equipped with 4 EDFA cards and 4U Multiplex Managed Chassis can be equipped with 16 EDFA cards

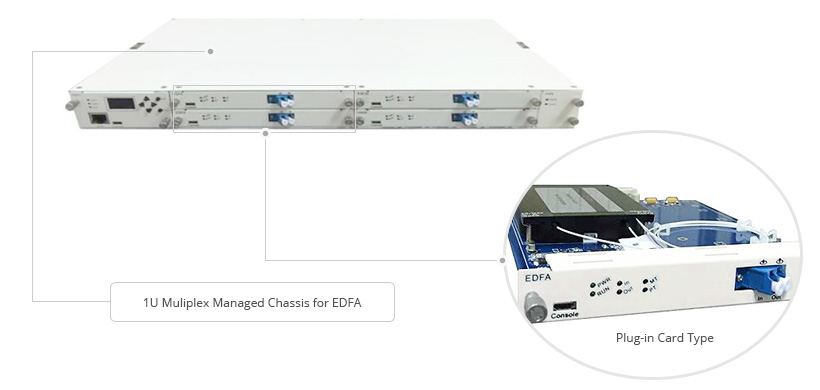

1U Multiplex Managed Chassis for Plug-in Card Type EDFA.

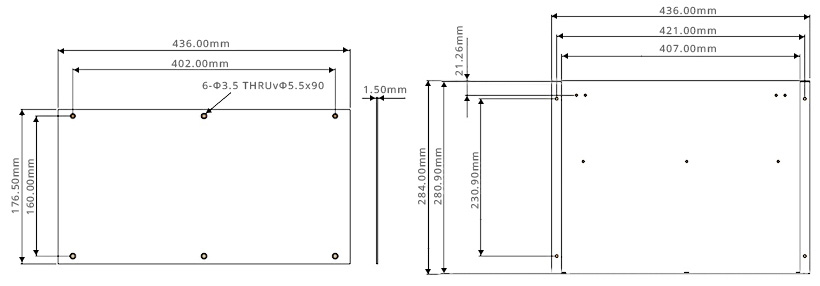

4U Multiplex Managed Chassis for Plug-in Card Type EDFA.

Parameters	Symbol	Min	Typ	Max	Unit
Operation Wavelength	λc	1530	1550	1562	nm
Saturated output power	Po			13	dBm
Input power	Pi	-3	------	10	dBm
Gain	G	------		------	dB
Noise Figure	NF	------	4.5	-----	dB
Output Power Stability	ΔPo	------	±0.05	±0.1	dB
Input Isolation	ISOi	30	-------	------	dB
Output Isolation	ISOo	30	-------	------	dB
Input pump leakage	PumpLin		-------	-35	dBm
Output pump leakage	PumpLout	-------	-------	-45	dBm
Return Loss	RL	-------	-------	-45	dB
Polarization Dependent Gain	PDG	------	-------	0.3	dB
PMD	PMD	------	-------	0.5	ps
Operation Temperature	Tw	-5	-----	60	℃
Storage Temperature	Ts	-40	-----	80	℃
Humidity		10	------	85	%
Power Supply	Vps	85/170	110/220	132/264	VAC
Power Consumption	P	-----	-----	18	W
SNMP network management interface	RJ45
Serial interface	RS232, RS485
Power supply	110VAC, 220 VAC, -48VDC
Connectors	Simplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available
Warranty	3 years
