Fiber Video Converter Optical Fiber Transmitter

: Optical Amplifier; Hits: 1069

Video Optic Transmission System could transmit uncompressed and high definition HDMI video and audio signal over one 1-core fiber up to 100Km. It’s with Lesser attenuation, wide bandwidth, high anti-interference and safety performance, small size and light weight.Our products have the incomparable

Specifications：

1 Channel HDMI over optical fiber transmitter and receiver set with embedded audio input/output FC 20km

HDMI Video Optic Transmission System could transmit uncompressed and high definition HDMI video and audio signal over one 1-core fiber up to 100Km. It’s with Lesser attenuation, wide bandwidth, high anti-interference and safety performance, small size and light weight.
Our products have the incomparable superiorities and characters to in long distance transmission and special environment application.
Over only one 1-core fiber, our products can carry you 1080P video and 190K sampling rate, 8 channels and HI-FI audio signal.
Using our products could save construction cost and difficulty, and ensure high quality signal transmission in multimedia system application

HDMI embedded audio input should work with HDMI embedded audio output.

Features

CRAFT: uncompressed technology
VIDEO SPEC: 1080P 60 Hz
Transmisson Distance:20km
Fiber Type: Single-mode Simplex
1-channel unidirectional HDMI (1-channel HDMI input,1-channel HDMI output; )with audio over single fiber
1080P long distance transmission for your digital flat panel displays
Using one HDMI to DVI cable, could realize DVI transmission
Using advanced and uncompressed digital fiber transmission technology, design simple, safe and reliable
FM3511-T/R supports WUXGA (1920 x 1200 @ 60 Hz) or 720p/1080i/1080p
Support HDTV highest resolution 1080P3
Support HDMI interface, compatible with HDMI 1.2a standard
Support input and output signal indicating
Plug and Play

Applications

Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Building to ing video conference calling
Small corporate campus video links

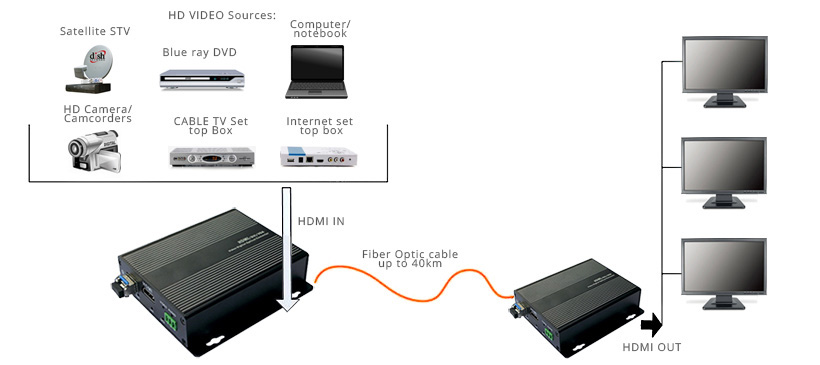

Product connection diagram

Description for HS-SDI Transmission:
1. Fiber-optic video transceiver mark:

T: fiber-optic transmitter
R: fiber-optic receiver

2. Power indication:

Light on, Fiber-optic video transceiver is working.

3. Fiber interface:

LC interface（SFP）（Warring：When the device is power on，don’t look directly into the eyes，in order to avoid eyesight damage）

4.Receiver indication:

Light on, Fiber-optic video transceiver is receiveing signal.

5.Video interface:

T: HDMI video signal input interface.
R: HDMI video signal output interface

6.Video indication:

Light on, Fiber-optic video transceiver is receiveing video signal,or transmitting video signal.

7.Audio indication:

Light on, Fiber-optic video transceiver is receiveing audio signal,or transmitting audio signal.

8.Data interface:

reverse data output.
Left： positive output data
Middle:negative output data
right：ground

9.Reverse data indication:

Light on,data is transmitting . Light off,no data signal.

10.Lock indication:

Light on,video data and audio data is locked.

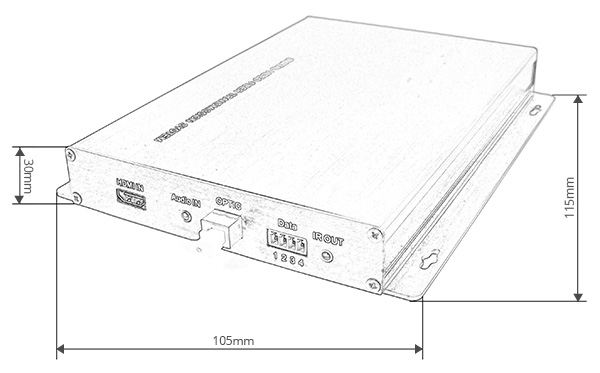

Dimension

Make to Order (Extend information)

Video Interface	Stereo Audio	Fiber Type	Fiber Port	Data Port	Power Supply	Package
1 CH HDMI	1 CH Forward 1 channel reverse 1 channel bidirectional	Single-mode Simplex	FC ST SC LC	1 channel Forward RS485/RS232/RS422 1 channel reverse RS485/RS232/RS422 1 channel bidirectional RS485/RS232/RS422	AC110~260V	stand-alone 1U rack mount

Note:
1.Fiber Port: FC and ST is available,and for SC/LC connector, Fiber-Mart will provide you a corresponding patch cable for connector conversion for free
2.1 U rack mount:the standard is with 4 slots,Fiber-Mart will offer you dam-board by free when some slots is empty.

Video
PC input highest resolution	1920×1200@60Hz
HD-DVD input highest resolution	720p/1080i/1080p
Input/output TDMS Signal bandwidth	1.65Gpbs
Input/output TDMS Signal voltage	1.2volts p-p
Input DDC Signal voltage	5volts p-p (TTL)
Fiber Optic
Fiber Choice	Meet IEEE802.3z, 1000BASE_LX Optical connection standards
Wavelength	1310nm
Transmit power	－9.5～－3dBm Average optical power@850nm
Optical receiving sensitivity	－23dBm Average optical power@850nm
Output optical modulation amplitude	180μW
Input optical modulation amplitude	≤15μW
Relative signal strength from	-116 DB/Hz
Return Loss	≤10 dB
Transport bit rate	240M Hz～1.65G Hz
Transmission distance	2km single mode
Environmental conditions
Operating Temperature	-25℃~+70℃
Storage Temperature	-40℃~+80℃
Relative Humidity	0~95%（No condensation）
Power
Power Consumption	5W (max.)
Power supply voltage	9-12VD
