High Power Optical Amplifier

: Optical Amplifier; Hits: 1132

FTTH-EYDFA-XDB-8P series is a Er/Yb Doped Fiber Amplifier that utilizes multimode laser pumping, all-fiber combiner and Erbium/Ytterbium double-clad, large-core fiber technologies to provide high RF output power over wide frequency bands with low distortion and high efficiency in low cost. This 8

Specifications：

26 dBm Output 8 ports High Power 1550nm Amplifier for FTTH

Fiber-Mart FTTH-EYDFA-XDB-8P series is a Er/Yb Doped Fiber Amplifier that utilizes multimode laser pumping, all-fiber combiner and Erbium/Ytterbium double-clad, large-core fiber technologies to provide high RF output power over wide frequency bands with low distortion and high efficiency in low cost.
This 8 ports Rack mountable amplifier can be integrated 1310nm, 1490nm, 1550nm WDM for optional for OLT signal application. Its output power can be distributed to multiple output ports for the application of CATV network. The front panel LCD display and status LED indicators for quick access of unit’s status. It suitable for high power broadband RF, VHF and band specific linear applications, particularly widely used in CATV transmission system and the high power distributing system FTTH requirement. It can be used for CATV analog/digital signal distribution, or match with PON system to construction the triple network integration.

Features

Serve as Rack mountable amplifier
High and stable saturated output power 26dBm per port
8 ports available, if you need other ports, please contact at This email address is being protected from spambots. You need JavaScript enabled to view it.
High Power: Up to 2W total, 1 Unit for 2000~4000 optical node
Alternative RF Connectors: Duplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available for choice
Single or dual 110VAC, 220VAC, and/or -48VDC power supply
1550nm Typical operating wavelength, Integrated 1310nm/1490nm/1550nm WDM for Optional
ATC (Automatic Temperature Control) and APC (Automatic Power Control) circuit
High stability and high precision MPU system
Intelligent network management system
SNMP network management ensure the connectivity with all other network management system
Network interface comes with Ethernet, RS-485 and RS-232
10 years of operation life
3 years warranty

Application
CATV analog/digital signal distribution
FTTH Optical Access
Optical Distribution System
In laboratory or field applications

R&D and Training

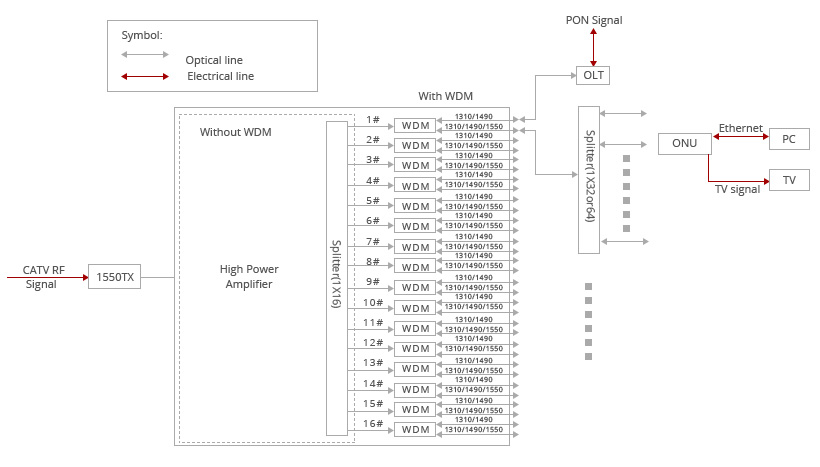

Simple Diagram

Epon System

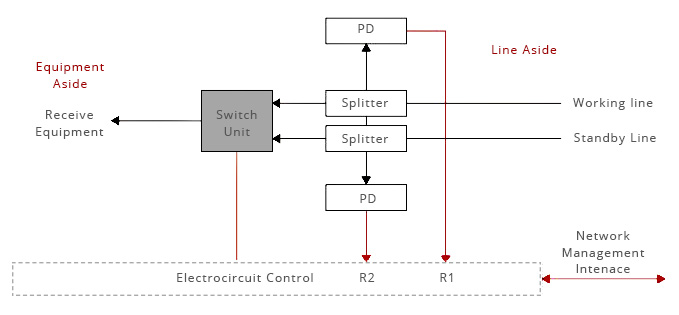

Block Diagram

Order Information

Category	APP	Mechanical	Configure	Input Power	Power/CH	Ports	Power1	Power2	Connector	WDM
HA	1	2	2	0	17	32	2	2	2	0
HA: High Power Amplifier	1:CATV	1:1U	1:Normal	0:-3~+10dBm	17:17dBm	1:1 port	1:110VAC	1:110VAC	1:SC/UPC	1：w/ WDM
2:2U	2:High End	1:+5~+15dBm	18:18dBm	16:16 ports	2:220VAC	2:220VAC	2:SC/APC	0：w/o WDM
		2:0~+10dBm	……	24:24 ports	3:110~220VAC	3:110~220VAC	3:FC/UPC
		3:-8~+10dBm	33:33dBm	32:32ports	4:-48VDC	4:-48VDC	4:FC/APC
		4:Others				0: None	5:LC/UPC
							6:LC/APC

Note 1: 1U rack, Maxim ports number: 4(SC/APC), or 8(LC/APC); 2U rack, Maxim ports number: 16(w/WDM), or 32(w/o WDM)
Note 2: High End configure with SNMP Net management, with standby switch function by RS485 connect.

Parameters	Symbol	Min	Typ	Max	Unit
Operation Wavelength	λc	1540	1550	1565	nm
Saturated output power (1)	Po	13		33	dBm
Input power	Pi	-3		10	dBm
Gain	G			30	dB
Noise Figure (2)	NF			6	dB
Output Power Stability	ΔPo		±0.05	±0.2	dB
Input Isolator	ISOi	30			dB
Output Isolator	ISOo	30			dB
Input Pump Leakage	PumpLin			-35	dBm
Output Pump Leakage	PumpLout			-45	dBm
Return Loss	RL			-45	dB
Polarization Dependent Gain	PDG			0.3	dB
Polarization Mode Dispersion	PMD			0.5	ps
Operating Temperature	Tw	-5		60	℃
Storage Temperature	Ts	-40		80	℃
Humidity (3)		10		85	%
Power Supply	Vps	170		264	VAC
Power Consumption	P			50	W

(1): Customer optional
(2): Test at +5dBm input
(3): No condensation
