Semiconductor Optical Amplifier

: Optical Amplifier; Hits: 1168

Design of SOA optical fiber amplifier for signal amplification with 1310 wavelength band, the transparent transmission protocol, suitable for high speed signal amplification (10Gbps) etc.. The stability SOA Pump optical laser and unique ATC (automatic temperature control) and APC (automatic power co

Specifications：

14dB Gain 1310nm Semiconductor Optical Amplifier

Design of SOA optical fiber amplifier for signal amplification with 1310 wavelength band, t
he transparent transmission protocol, suitable for high speed signal amplification (10Gbps) etc..
The stability SOA Pump optical laser and unique ATC (automatic temperature control) and APC (automatic power control)
circuit are employed in it as the key component to ensure the high stability and reliability of output power.

Features

Input power: -20~+6dBm
Typical input power:-6dBm
High-performance dual-pluggable power supply: 110V/220V mixed with 48V
Complete network management interface: Ethernet, RS-485, RS-232 interface
Support Telnet and SNMP Network management
High Precise AGC and APC Circuit: Typical power control accuracy is ±0.05dB
High Precise ATC Circuit: Typical temperature control accuracy is ＜±0.1℃
High stability and reliability: MTBF＞150000 hours
All performance compatible with BellcoreGR-1312-CORE request
Intelligent Temperature Control System:using a dedicated Temperature control chip which make cooling and power loss reduce 30% thancompetitors

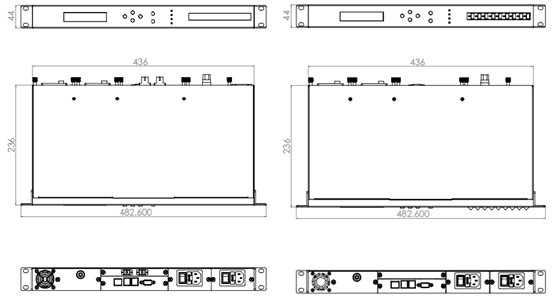

Mechanical Structure

1U 483*236*44 mm

Specification

Parameters	Symbol	Min	Typ	Max	Unit
Operating Wavelength	λc	1290	1310	1330	nm
Saturated output power（1）	Po	------	------	8	dBm
Input Power	Pi	-20	-6	6	dBm
Gain	G	------	10	14	dB
Noise Figure	NF	------	6	8	dB
Output Power Stability	ΔPo	-----	±0.05	±0.1	dB
Input Isolation	ISOi	30	-------	------	dB
Output Isolation	ISOo	30	-------	------	dB
Return Loss	RL	-------	-------	-45	dB
Polarization Dependent Gain	PDG	------	-------	0.3	dB
PMD	PMD	------	-------	0.5	ps

Environmental Performance

Parameter	Symbol	Min	Typ	Max	Unit
Operation Temperature	Tw	-5	-----	60	℃
Storage Temperature	Ts	-40	-----	80	℃
Humidity(2)	------	10	------	85	%

Electrical Characteristics

Parameter	Symbol	Min	Typ	Max	Unit
Power Voltage	Vps	85/170	110/220	132/264	VAC
Power Consumption	P
