Features:Pre-stubbed, factory-polished ferruleNo epoxy requiredPrecision mechanical alignment insures low lossFiber can be reseatedShow MoreApplications:Premise environmentsConnections at the desk for LAN environmentsPatch panelsDirect equipment termination
Specifications:

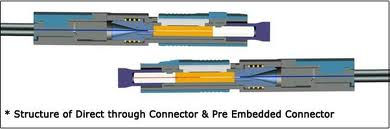

Fast Connector (Field Installable) Fast Connectors are compatible with 250µm and 900µm optical fibers, as well as 900µm, 2mm and 3mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved. Features: Pre-stubbed, factory-polished ferrule No epoxy required Precision mechanical alignment insures low loss Fiber can be reseated Show More Applications: Premise environments Connections at the desk for LAN environments Patch panels Direct equipment termination Specifications PARAmETER VALUE Insertion Loss: Singlemode - UPC Singlemode - APC Multimode - PC Average: 0.2 dB, Maximum: 0.5 dB Average: 0.3 dB, Maximum: 0.6 dB Average: 0.1 dB, Maximum: 0.5 dB Return Loss at Room Temperature: Singlemode - UPC Singlemode - APC-AU* Singlemode - APC-AA** Multimode Average: -55 dB, Maximum: -45 dB Average: -55 dB, Maximum: -50 dB Average: -65 dB, Maximum: -60 dB Average: -25 dB, Maximum: -20 dB Operating Temperature -40°C to +75°C |
