High Power Fiber Collimator

: Passive Fiber Component; Hits: 1542

Specifications：

1M 10W 1310nm 900um High Power Single Fiber Collimator

Fiber Collimators are devices used to expand and collimate the output light at the fiber end, or to couple light beams between two fibers. They are a module that combine a fiber and a lens, and has a function that produces parallel beams. When the fiber collimators are manufactured, the positions of the fiber and lens are adjusted so that parallel beams can be obtained, and this generally requires extremely fine adjustments. The more energy the fiber collimator is able to gather form the source and launch into the fiber end.They are available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm) or fiber options (SM fiber, MM fiber, PM fiber, and LMA fiber, etc.).

Characteristics

Low Insertion Loss and Return Loss
Low Back Reflection
High Extinction Ratio
Low Insertion Loss
Wide Operating Wavelength and Temperature
Scientific design with serious processing art

Applications
Optical cable jumper or pigtail cable
Laser Beam Collimating
Optical cable jumper or pigtail cable
PM Isolator and PW WDM

Laser Beam Collimating

Specifications

Type	Single Fiber	Dual Fiber
Grade	Premium	Premium
Wavelength (nm)	1310+30, 1550+30, 1310/1550+30, 980/1550+30 or custom wavelength
Insertion Loss (Typ.) (dB)	0.17	0.2
Insertion Loss (Max.) (dB)	0.2	0.28
Return Loss (Typ.)	65	65
Beam Diameter (mm)
Operating Temperature( ° C )	-20 ~+75
Storage Temperature ( ° C )	-40 ~+85
Dimensions (mm)	1.8(OD) Lens(Standard)	2.40x10 or 3.2x10 gold plated SS tube or 2.78x10 glass tube or custom size
1.0(OD) Lens(Mini-size)	1.40x9 or 2.8x10 gold plated SS tube 2.0x9 glass tube or custom size
Fiber Type	250um bare fiber or 900um tight buffer
At 10mm working distance and single wavelength. (Dual wavelength IL will increase by 0.1 dB)
At <1mm reflection working distance (RWD) and single wavelength.

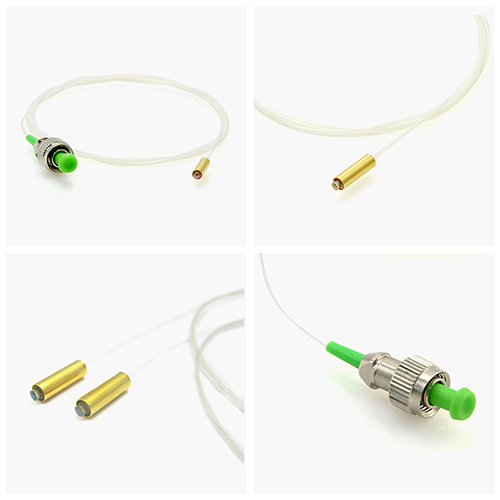

Sample Picture

Dimension
