High Power Polarization Maintaining Isolator HPPMIS

High Power Polarization Maintaining Isolator HPPMIS

Low Insertion Loss High Return Loss High Isolation High stability High Reliability ApplicationsOptical Fiber AmplifiersTesting InstrumentationsFiber SensorFiber LasersLab Research

 Specifications:

10W 1030nm High Power Polarization Maintaining Isolator HPPMIS


Features


  • Low Insertion Loss
  • High Return Loss
  • High Isolation
  • High stability
  • High Reliability

    Applications

  • Optical Fiber Amplifiers
  • Testing Instrumentations
  • Fiber Sensor
  • Fiber Lasers
  • Lab Research

    Picture Details

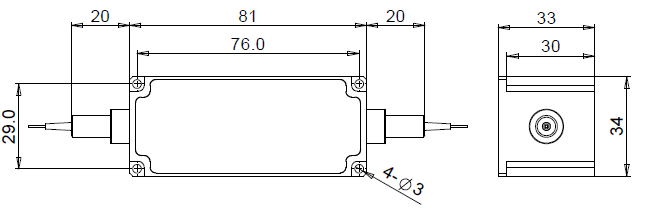

    Package Dimensions



    Ordering Information


    HPIS/HPPMIS-1030-234567-88
    1064 Center Wavelength: 1030=1030nm
    2 Axis alignment F=Slow axis working Fast axis blocked, B=Both of axis working, N=No axis
    3 Fiber type 0=PM Panda fiber, 1=SMF-28e, 2=Hi1060
    4 Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube
    5 Fiber length: 0=0.8m,1=1m
    6 Package Dimension: 0=81*34*33mm, S=Specified
    77 Handling Power 01=1W, 02=2W,......,05=5W,......, 20=20W



    Parameters Unit Value
    Type - HPIS HPPMIS
    Center Wavelength nm 1030
    Operating Wavelength Range nm ±10
    Typ. Peak Isolation at 23℃ dB 30
    Isolation at 23℃ dB 25
    Typ. Insertion Loss at 23℃ dB 1.3
    Max. Insertion Loss at 23℃ dB 1.5
    Max.PDL at 23℃ dB 0.15 /
    Extinction Ratio at 23℃ Fast axis blocked dB / 22
    Both of axis working dB / 20
    Min. Return Loss(Input/Output) dB 45
    Max. Optical Power CW W 1, 2, 3, 5, 10, 20 or specify
    Pulse Peak kW 10
    Max. Tensile Load N 5
    Fiber Type - HI 1060 fiber or specify PM980 fiber or specify
