Polarization Maintaining In-line Polarizer

: Passive Fiber Component; Hits: 1553

Parameters Unit Value Center Wavelength nm 1310, 1550 1064 980 850 Operating Wavelength Range nm ±50 ±30 ±10 ±10 Typ.Insertion Loss at 23℃ dB 0.3 0.4 0.7 0.8 Max.Insertion Loss at 23℃ dB 0.5 0.6 0.9 1 Min.Return Loss dB 50 50 50 50 Typ.Extinction Ratio at 23℃ dB 30 30 28 28 Min.Extin

Specifications：

1060nm Polarization-Maintaining In-line Polarizer

Features

Low Insertion Loss
High Return Loss
High Extinction Ratio
High Reliability
High Stability

Applications
Communication Systems
Test Instrumentations
Fiber Sensor

Research

Specifications

Parameters	Unit	Value
Center Wavelength	nm	1310, 1550	1064	980	850
Operating Wavelength Range	nm	±50	±30	±10	±10
Typ.Insertion Loss at 23℃	dB	0.3	0.4	0.7	0.8
Max.Insertion Loss at 23℃	dB	0.5	0.6	0.9	1
Min.Return Loss	dB	50	50	50	50
Typ.Extinction Ratio at 23℃	dB	30	30	28	28
Min.Extinction Ratio at 23℃	dB	28	28	25	25
Max.Optical Power(CW)	mW	300
Max.Tensile Load	N	5
Fiber Type	-	PM1550	PM980	PM980	PM850
		SMF-28E	Hi1060	Hi1060	SM800
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;

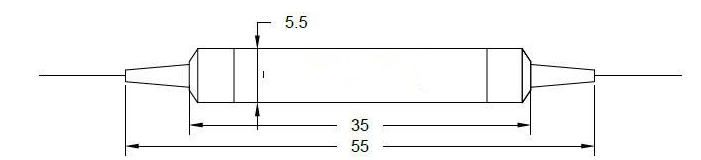

Package Dimension

Ordering Information

ILP-1111-2345-666

1111	-Center Wavelength:	1550=1550nm,1310=1310nm,......,0850=850nm
2	-Fiber type for input:	0=Panda fiber, 1=smf-28e, 2=hi1060,
3	-Fiber type for output:	0=Panda fiber, 1=smf-28e, 2=hi1060,
4	-Pigtail type:	0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
5	-Fiber length:	0=0.8m,1=1m
666	-Connector type:	0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC

Parameters	Unit	Value
CenterWavelength	nm	1310,1550	1064	980	850
OperatingWavelengthRange	nm	±50	±30	±10	±10
Typ.InsertionLossat23℃	dB	0.3	0.4	0.7	0.8
Max.InsertionLossat23℃	dB	0.5	0.6	0.9	1
Min.ReturnLoss	dB	50	50	50	50
Typ.ExtinctionRatioat23℃	dB	30	30	28	28
Min.ExtinctionRatioat23℃	dB	28	28	25	25
Max.OpticalPower(CW)	mW	300
Max.TensileLoad	N	5
FiberType	-	PM1550	PM980	PM980	PM850
		SMF-28E	Hi1060	Hi1060	SM800
OperatingTemperature	℃	-5~+70
StorageTemperature	℃	-40~+85
Fordevicewithconnector,ILis0.3dBhigher,RLis5dBlower,ERis2dBlower;
Thedefaultconnectorkeyisalignedtoslowaxis;
