Full Auto Optical Alignment System (PLC Splitter Aligner)

Full Auto Optical Alignment System (PLC Splitter Aligner)

Auto-Align Systemand optical waveguide alignmentand packaging>Low-cost, Compact, High Precision and Maneuverable Manual-Alignment Machine for PLC Pigtailing

 Specifications:

Auto-Align System & Optic waveguide alignment and packaging
Low-cost, Compact, High Precision and Maneuverable Manual-Alignment Machine for PLC Pigtailing

The Sunma instrument company develops a new generation of manual and auto aligner for planar lightwavecircuit(PLC)manufacturing. This product line features cost effective, high precision motion control capability with a compact mechanical design.
High quality components are used to assemble the system to guarantee high precision and repetitive motion applications.
The precision of linear motion motion (Translational) X, Y, Z and rotationl motion (Rotational)Pitch, Yaw, the Roll is 0.01 micron and 0.02 degree respectively.
All the machinical handlers are our own proprietary designs and made of high quality stainless steal to achieve motion and temperature difference stability.
Handlers for fiber coupled array are equiped with touch sensors for accurate spacing control.
Versatile motion control software is both user friendly and powerful.
Its modular design makes system upgrade and modification very simple. Moreover, alignment procedure customerization is made possible by the "workflow editor". Hence, users only just need to add and subtract the preinstalled functions and input the corresponding parameters to establish a particular alignment process.
2-day Free training, Installation &Calibration all for Free
Advantages:Trademarked Technology-5 Rs
Real 6 degrees of freedom
Real Parallelism
Real Seamless Coupling
Real Gap Control
Real Performance



Features:
Low-cost, compact and fast Auto-Alignment machine for PLC pigtailing
Fast 1st light searching by near IR Camera(visible band to 1330nm) & rapid and automatic alignment
Fast automatic pitch-yaw parallelism adjustment
Accurate gap distance control by means of touch sensor
Precision motion platform of Newport delivers high accuracy and repeatability
Powerful software for easy operation
Total alignment time:~125s
In addition to automatic, as well as semi-automatic and manual options

Applications:

  • Silicon waveguide alignment/coupling
  • 1xN Splitter
  • 2xN splitter
  • Arrayed waveguide grating
  • Collimator
  • Special/customized optical fiber and other related optical waveguide alignment

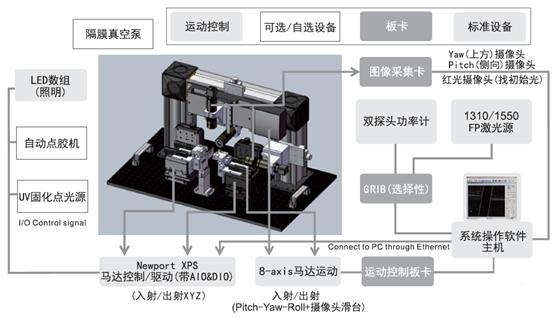

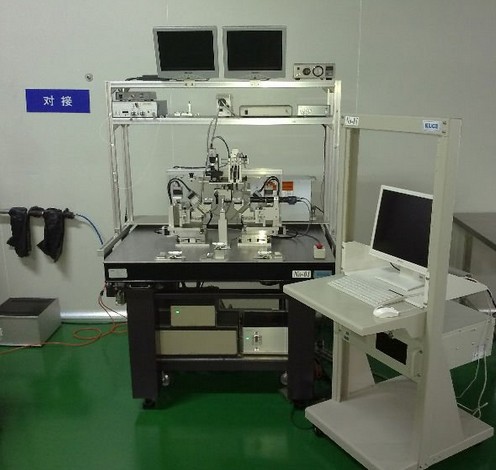

System confguration:

Specifications:


Translation(X-Y-Z axis)

Component

Newport VP-25XA or VP-25XL

Travel Range(mm)

XYZ: 25mm

Resolution(μm)

0.1 (VP-25XA), 0.05 (VP-25XL)

Bi-directional Repeatability(μm)

0.15

On-axis Accuracy(μm)

1

Maximum(mm/s)

25

Rotation(PitchθX-YawθY-RollθZ axis)

Component

Newport CMA-PP or TRA-PPD

Travel Range(mm)

θX:6mm, θY:6mm, θZ:12mm (±3°)

Resolution(μm)

0.3 (CMA-PP), 0.1 (TRA-PPDL)

Bi-directional Repeatability(μm)

2

Maximum(mm/s)

0.4

Tooling

(Patent Pending)Touch sensor embedded Universal Fiber Array Holder × 2

(Patent Pending)Touch sensor accuracy(μm)< 2

Universal 1×N Splitter Holder(1×2 to 1×64)× 1

Vacuum AWG Holder × 1

Vision

Camera Type

CCD×2, IR Cam×1 for 1st light searching

Lighting

Software Controlled LED Bar Light

Machine vision

Image ssen through PC Vision Card

Image Resolution

<3μm/Pixel(depends on Mag. X of lens)

Motion

100mm(according to request)
6 or 13mmmanual XY stage
