SUNMA MPOMTP Fiber Polishing Fixture

SUNMA MPOMTP Fiber Polishing Fixture

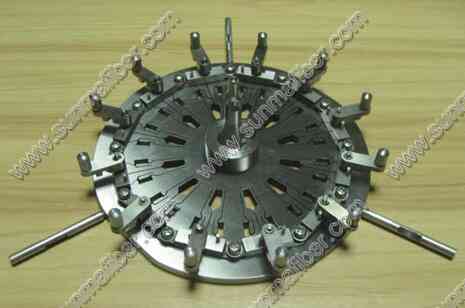

MPO/UPC-18S and MPO/UPC-24S are designed for polishing MPO/UPC and MTP/UPC ferrules on Seikoh Giken SFP-550 and SunmaFiber OP-2000C polishing machine. There are 18 or 24 ferrules positions, and it could polish 18 or 24 MPO ferrules per cycle. It is easy-to-lock rectangle shape ferrules without screw

 Specifications:

SunmaFiber MPO/UPC-18S/24S MPO/UPC Polishing Fixture

SunmaFiber MPO/UPC-18S and MPO/UPC-24S are designed for polishing MPO/UPC and MTP/UPC ferrules on Seikoh Giken SFP-550 and Neofibo NEOPL-2000A polishing machine. There are 18 or 24 ferrules positions, and it could polish 18 or 24 MPO ferrules per cycle. It is easy-to-lock rectangle shape ferrules without screws and screwdrivers. SunmaFiber MPO-UPC-18S and MPO-UPC-24S impove polishing efficiency and save more time during locking and releasing MPO ferrules.





Model:
MPO/UPC-18S, 18 MPO ferrule positions
MPO/UPC-24S, 24 MPO ferrule positions

Place of Origin: SunmaFiber, China



Key Features:
Designed for polishing MPO/UPC and MTP/UPC ferrules.
Polishing 18 or 24 MPO/UPC and MTP/UPC ferrules per cycle.
Easy and Fast to lock and release ferrules.
Perfect 3D performance with high uniformity and repeatability.
At least 12 months warranty for SunmaFiber mainbody.



Technical Parameters:

Item

Technical Data

Model & Type #

MPO/UPC-18S
MPO/UPC-24S

Matched Polishing Machine

Sunma OP-2000C/D/E
Seikoh Giken SFP-550

Capacity

Polishing 18 ferrules per cycle
Polishing 24 ferrules per cycle

Fasten Method

SunmaFiber Patent Quick-lock

SunmaFiber MPO/UPC-24K MPO/UPC Polishing Fixture

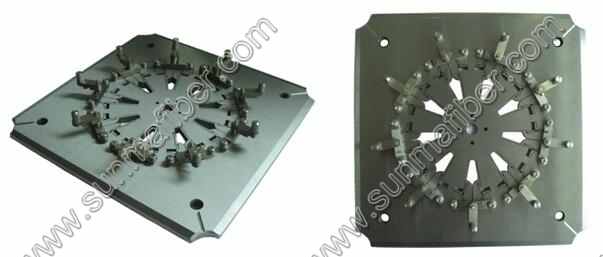

SunmaFiber MPO/UPC-24K is designed for polishing MPO/UPC and MTP/UPC ferrules on Senko APC-8000 polishing machine. There are 24 ferrules positions, and it could polish 24 MPO ferrules per cycle. It is easy-to-lock rectangle shape ferrules without screws and screwdrivers. SunmaFiber MPO-UPC-24K impoves polishing efficiency and save more time during locking and releasing MPO ferrules.

Key Features:
Designed for polishing MPO/UPC and MTP/UPC ferrules.
Polishing 24 MPO/UPC and MTP/UPC ferrules per cycle.
Easy and Fast to lock and release ferrules.
Perfect 3D performance with high uniformity and repeatability.
At least 12 months warranty for SunmaFiber mainbody.

Technical Parameters:

Item

Technical Data

Model & Type #

MPO-UPC-24K

Matched Polishing Machine

Senko APC-8000

Capacity

Polishing 24 ferrules per cycle

Fasten Method

SunmaFiber Patent Quick-lock


Metal Parts & Consumable



Description


Metal briquetting for SunmaFiber

Rotation Handle for SunmaFiber

Rotation axis for SunmaFiber (Consumable) *

* Rotation Axis will be wearable when operator uses SunmaFiber several months. The 3 kinds of metal parts are not covered by warranty.

Standard Package and size information.
Gross weight: 2.0 kgs
Packing size: 22cm x 22 cm x 10cm
