Sunma SMT Fiber Interferometer

Sunma SMT Fiber Interferometer

SMT fiber interferometer is independently developed by Sunma Technology, used to measure radius of curvature, Apex offset, Fiber Height and polishing angle,key error of APC connector, in the meantime, show the topography of the connectors and fiber ends directly and clearly. The main parts of S

 Specifications:

SMT Fiber Interferometer

SMT fiber interferometer is independently developed by Sunma Technology, used to measure radius of curvature, Apex offset, Fiber Height and polishing angle,key error of APC connector, in the meantime, show the topography of the connectors and fiber ends directly and clearly.

The main parts of SMT include interferometer, Lenovo table business computer and software package.

SMT adopts 650nm high power LED Light source, which ensure user get clear interference image.

SMT offers two kinds of chucks (2.5mm universal &1.25mm universal), with which user can test almost all kinds of connecters. 2.5mm universal used to measure FC/PC.SC/PC.ST/PC, E2000/PC, DIN, FC/APC, SC/APC kinds of connectors, 1.25mm universal used to measure LC/PC, MU/PC, LC/APC kinds of connectors, and you don’t need to replace chucks and calibrate when you transfer between APC and PC connector mesurement, only turning “angle adjuster” to relative angle is ok, very convenient to operate.

Our software has features of accuracy, high repeatability and convenient operability. Before initial test, user should calibrate the unit first. Its very easy to calibration for SMT. When landing calibration interface,
turning six points averagely and measuring after focusing accurately, then click “ok” button, it will be automatically calibrated. You don’t need to move hard device by yourself, as the software will calibrate inner settings automatically.

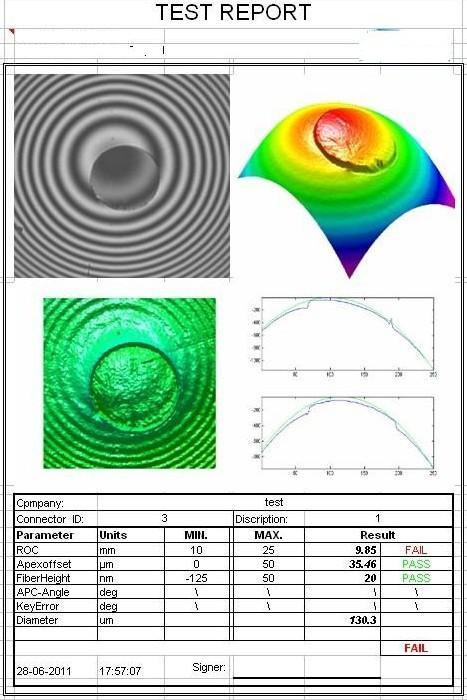

Then user can start measurement, only click “measure” button can finish one test, the test result and six historical records will be shown right under the interface, user could decide to save the record or not. If yes the data will be saved in excel format, and it will judge the result qualified or not automatically according to user’s criteria or defaulted criteria. In the meantime, the topography of the fiber or connector will be shown on the screen by 3D mesh diagram as well as contour diagram and surface roughness diagram.

Features
1. High repeatability, accuracy.
2. Convenient hardware and software operability.
   Don’t need to change chucks when transfer between APC and PC connecter measurement.
   When calibration, software will calibrate automatically, user don’t need to move the unit.
3. With patent, easily fasten chucks, Unique APC Fluctuate locate technology made the measurement never more precisely.
4. 3D-Mesh diagram and analysis chart directly reflect fiber or connecters details.
5. Test report and data will be saved in excel format, easy for document management and print out.
6. Absolutely competitive price.

Repeatability ROC ±0.05mm
Fiber height ±1nm
Apex offset +-0.5um
Angle ±0.01deg
Stability ROC ±0.05mm
Fiber height ±2nm
Apex offset +-1.5um
Angle ±0.015deg
Working Temperature -10℃~30℃
Zoom time 10X
Resolution 1um
Wavelength 635nm
Power supply 12V DC
Dinmensions 32cm*16cm*10cm(L * W * H)


1  1x Interferometer
2  1x Lenovo table computer
3  2x chucks(LC universal and SC universal)
4  2x APC locator clamps(FC/APC ,SC/APC,)
5  2x calibration connectors +Standard Utensil
6  1x toolset
7  1x RS232 cable
8  1x power cable
9  1x software set
10 1x User manual
