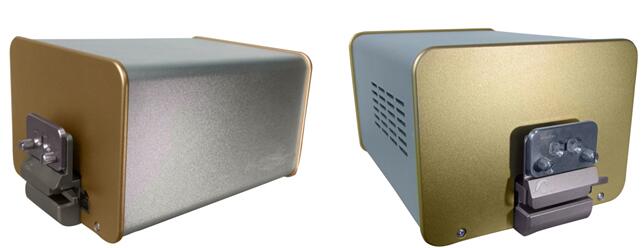

SunmaFiber-MT Fiber Connector Optical Interferometer is a high precision instrument developed and manufactured by Wuhan Sunma Technology Co., Ltd. to measure the end face geometry of optical fiber connectors. It can supply the 3D topology image combining the newest high-speed computer and powerful s
Specifications:

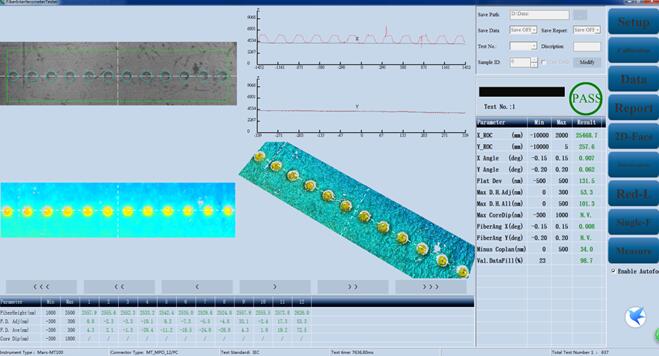

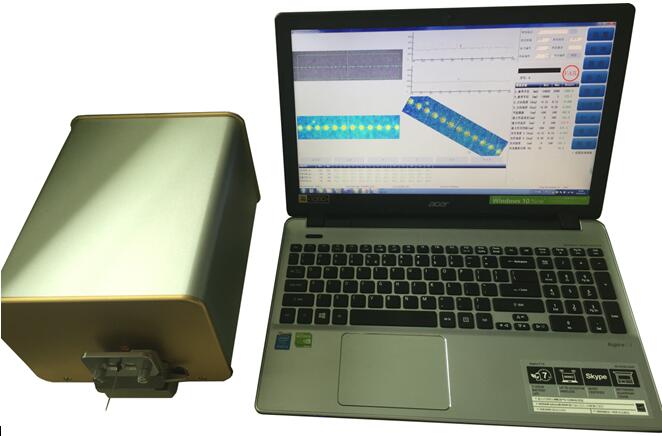

SunmaFiber-MT Fiber Interferometer SunmaFiber-MT Fiber Connector Optical Interferometer is a high precision instrument developed and manufactured by Wuhan Sunma Technology Co., Ltd. to measure the end face geometry of optical fiber connectors. It can supply the 3D topology image combining the newest high-speed computer and powerful software system. Information: SunmaFiber-MT interferometer use white light and red light combined with the measurement of multi-fiber connector, the use of red light to measure single fiber connectors. Single and multi fiber measurement use the same software design, a key switching. The process of focusing, calibration, and measurement is completed automatically by software. SunmaFiber-MT single - and multi - fiber interferometer is mainly divided into two parts, the host computer and the special measuring software. The equipment is mainly composed of the following characteristics: Up to 72 cores test and quick speed, customized clamp (2)Simple and user friendly software interface Key Features and Benefits: 1. No-contact white light and fast response of measurement. 2. Precise data processing, with high accuracy measurement results. 3. Novel robust algorithm, accurate results even with contaminated ferrule surface 4. High-precision and long life fiber clamp. 5. Automatically generate three-dimensional map, fitting map which directly reflect the details of the optical fiber connector; 6. Automatically generate test reports and test data in Excel format, which is easy to manage and print; Specification: Multi-Fiber Measure Item Measurement Range Repeatability Reproducibility X/Y Ferrule Radius(mm) 3~∞ 1% 3% X/Y Ferrule Angle(°) 0 or 8 0.01 0.02 Fiber Height(um) 0~8 0.015 0.025 Test Speed(Second) MT-12 5s(Without Auto Focusing) Single-Fiber Radius Of (mm) 3~∞ 0.1% 0.2% Fiber Height(nm) -150~+150 1 2 Appex offset(um) 0~500 1.0 1.5 APC Angle(°) 0 or 8 0.01 0.015 Test Speed(Second) 0.5s Objective Zoom Time 2X Resolution Ratio 2.6um Light Source Red and White Power Supply 220V 50Hz |
