Furukawa_FITEL Optic Fiber & Cable Identifier

Furukawa_FITEL Optic Fiber & Cable Identifier

The FITEL ID-H is a rugged, user-friendly tool which identifies optical fibers by detecting the optical signals passing through the fiber utilizing local detection technology.

 Specifications:

Optical Fiber and Cable Identifier

The FITEL ID-H is a rugged, user-friendly tool which identifies optical fibers by detecting the optical signals passing through the fiber utilizing local detection technology.

Features
  • Wide dynamic range.
  • No Head changing or adjustments.
  • LCD screen adoption.
    (Detection Light Level , Modulation Light Frequency , Machinery Information)
  • Detects the signal without disrupting traffic.
  • Detects the tone signal and traffic signal.
  • Lighted LED displays for clear identification.
  • Lightweight design for easy handling.
  • Super low insertion loss.
Optical Fiber Identifier ID-H/R


Constructions
Ordering
Code
Product Name Code Remarks
ID-H/R Main unit AI02H Battery and Strap and Instruction manual are included
Carrying Case AI02H-001 Easily to belt or tool pouch

Specification
Item Specification
Applicable Fiber Up to SM 12-fiber ribbon SM 250祄 single fiber Up to 3mm Cordage (built-in only SM 250祄 single fiber) SM 900祄 tight buffer (Reference value)
Applicable Wavelength 900 to 1700nm
Frequency for Tone Signal 270Hz and 1kHz and 2kHz(Duty ratio 50?0%) Modulation Light
No Modulation Light
Communication Light that Continued
Measurement Range of Optical Power *1 0 to -80dBm
Maximum Level of Insertion Loss (Typical) 1310nm 0.1dB 0.5dB
1550nm 1.0dB 2.0dB
1650nm 2.5dB 3.0dB
Average Minimum Detection Level *2 (Typical) 1310nm -40dBm -30dBm -15dBm
1550nm -50dBm -40dBm
1650nm
Indication for Traffic Signal or Tone Signal [ Traffic Signal *3]
Direction LED illuminates + Intermittent buzzer sound + Displayed an Optical power measurement range by LCD
[ Tone Signal ]
Direction LED illuminates + Tone LED illuminates + Continuous buzzer sound + Displayed an Optical power measurement range by LCD + Displayed Frequency by LCD
Operating Time 8 hours (Using alkaline battery)
Item Storage temperature -20 to 60癈 (humidity 0 to 95%)
Operating temperature -10 to 50癈 (humidity 0 to 95%)
Dimensions (W譊譎) 40?5?53mm
Weight 160g (Including battery)
*1: Duty ratio 50%
*2: This specification is based on our optical fiber with our test method.
*3: DO NOT disconnect or rewire based only on the trafic signal detection. Make sure to launch the tone signal before disconnecting or rewiring the fiber.

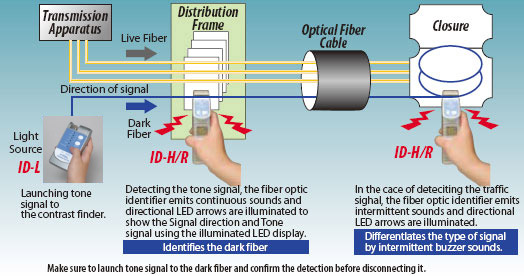

Example of application
Example of application
