336 Pipeline & Cable Locators scan the ground and use radio frequency signal to locate Pipe & Cable. The Pipeline & Cable Locator consists of two basic units: a directional radio frequency transmitter and a receiver. We utilize the principle of electromagnetism .The electromagnetic method is a
Specifications：

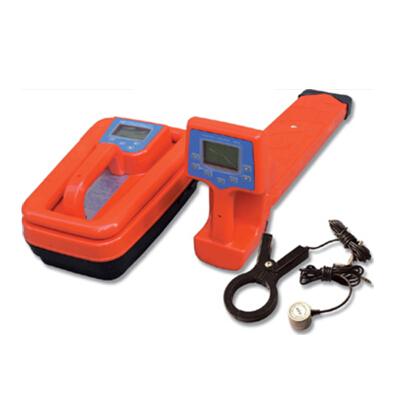

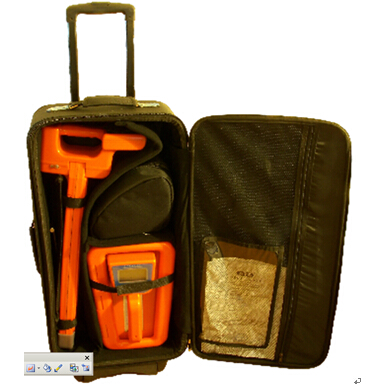

| Pipeline & Cable Locator The ST-336 Pipeline & Cable Locator is designed for the underground utilities route locating, the depth measuring and distance tracing. The multi-coil electromagnetism technology is adopted to enhance the capability of pipeline/cable locating, depth measurement and recognition. A distance trace of the pipeline/cable can be recorded to spot the pipeline/cable from the crowded complex. It is widely used in the telecommunication, electric, tap water, natural gas and physical prospecting.   TransmitterTechnical specification of Transmitter:Signal frequencyRouter and depth mode： 480Hz, 30.72 KHzInduct mode： 30.72 KHzOutput Pressure： 0-500 VP-P automatic/manual adjustment due to the insulated instanceOutput wave shape： sine wavePower source： 12 VDC 4.5 AH in the Ni-MH cellPeak output power： 10WInductive clamp： 30.72 KHz ReceiverTechnical specification of Receiver:Power loss： ＜1WPower source： 12 VDC 1.5AH in the Ni-MH cell or 10 alkalescency batteriesBiggest test burying depth： 4.5 meters (normal instance)The best burying depth error： ≤0.05h±5cm(“h” is pipeline depth)The test route error ： ≤5cm(normal condition)The test insulated error： ≤25MΩTest the route and the efficient depth with Inject method ≥20Km(normal instance)Test the route and the efficient depth with Induct method ≥3Km(normal instance)Note:The objective pipeline has no insulated failure or other interruption in theabove-mentioned range in the normal instances. Environmental requestOperating temperature： - 20 ℃ ~ + 50 ℃Storage temperature： -40 ℃ ~ + 70 ℃Relative humidity ： 10%~90%Atmospheric pressure： 86~106KPaEnvironment noise： ≤60dB  |
