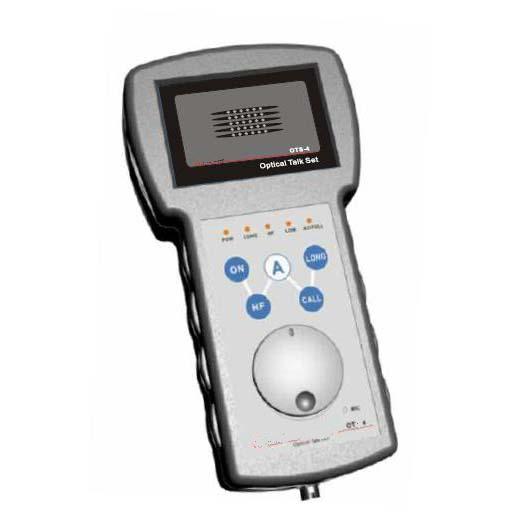

ST-4102 Optic Talk Set

ST-4102 Optic Talk Set

it is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunic

 Specifications:

ST-4102 Optic Talk Set

Features:

       Two pairs of ST-04 supports tri-party communication via clip-on coupler device

       Hands-free(HF) speaker provides users with convenient operation
       Maximum dynamic range 50dB@1550nm for long distance communication

Main Features:       Energy-saving design, long-time operation       Can be used as a steady laser source       Articulate voice, low background noise
       Judgmatical calling function       32 steps volume control       Low-power alarm       Maximum dynamic range 50dB for long distance communication

Specification:

  ST-041   ST-042
Wavelength A:1310nm, B:1550nm (unit A works at 1310nm, unit B works at 1550nm)
Telecommunication system Full duplex communication
Fiber Type  SM & MM (the dynamic range will shrink 20dB for MM fiber)
Spectral Width  <15nm
Adaptor type FC/PC FC/PC
Dynamic Range 40dB 50dB
Output Power -3 dBm
Power Supply 9V Laminated Battery &. AC/DC adaptor Replaceable build-in Ni-MH Battery &. AC/DC adaptor
Operating Hours 10 hours (standard) 40 hours (standard)
  ST-041   ST-042
Tri-party communication N/A
Hands-free speaker NO YES
Dimension 160L*70W*20H 220L*110W*45H
Operating Temperature -10~+50C
Storage Temperature -20~+70C
Operating Humidity <90% (Non-condensing)
Net weight 200g (including battery) 550g (including battery)
 @ 1550nm��CW��23【3C, Relative Humidity ÷70%, with FC connector

Ordering Information:

Standard Accessories: Main uints (unit A and unit B), FC/PC connector, Carrying Bag, Manual, Battery, Headset, AC/DC Adaptor, Test Report Optional Accessories:Clip-on Device, ST/PC Connector, SC/PC Connector
