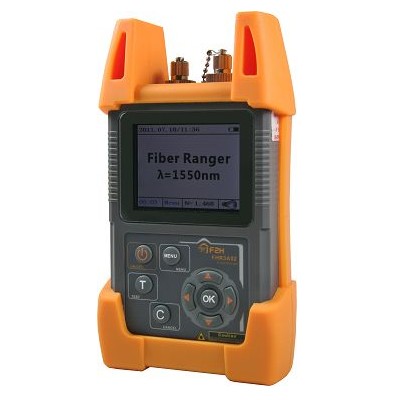

ST-FR0203 Fiber Ranger(Non-reflection detected)

ST-FR0203 Fiber Ranger(Non-reflection detected)

The FR02/03 is a high performance optical fiber troubleshooter for locating fiber break and imperfections. It detects the break location in the optical fiber and displays the result on the LCD. This portable, easy to use fiber ranger is an ideal instrument for fiber cable construction and maintenanc

 Specifications:

FR02/03 New Fiber Ranger

General Description:
The FR02/03 is a high performance optical fiber troubleshooter for locating fiber break and imperfections. It detects the break location in the optical fiber and displays the result on the LCD. This portable, easy to use fiber ranger is an ideal instrument for fiber cable construction and maintenance.

Features:
 1.Low Dead Zone of only 10 meters;
 2.Back-light LCD display;
 3.Rechargeable batteries support up to 5000 times measurements;
 4. Data transmission&.storage through mini USB.
 5.Build-in Visual fault locator

Item / Model No. FR02 FR03
Fiber Type 9/125 μm Single Mode
Wavelength 1550 ± 20nm
Emitter Type LD
Connector Type FC/PC (interchangeable SC,ST)
Pulse Width 10ns/20ns/40ns/80ns/160ns/320ns/640ns
/1280ns/2560ns/5120ns/10240ns/20480ns
Max. Output Power 90 mW
Max. Measurement Range 100 Km(Reflection event, >1dB)
Distance
Accuracy
Reflection event ± (2 + 0.1% x Distance)
Non-Reflection
event
± (100 + 0.5% x Distance)
Data Storage 260 measurements
Dead Zone 10 m (Reflection event )
Power Supply AC/DC adaptor &. Rechargeable Batteries* 4
Battery Life 5,000 times measurement
Operating Temp. -10 ~ +50℃
Storage Temp. -20 ~ +60℃
Humidity 0 ~ 85% (non-condensing)
Communication Port Mini USB
Weight 400 g
Dimension 190*105*55 mm
Max Event No. Max Event No.13 refective
event+13 Non-refective event
1 refective even

VFL Wavelength 650±10nm
Output Power 5mW ( +/- 1mW changeable)
Modulated Frequency 2Hz
