ST-3224 MPO Power Meter & ST-3124 MPO Light Source

ST-3224 MPO Power Meter & ST-3124 MPO Light Source

It is special for testing MPO fiber. At recent years, as the rapid development of data centre and cloud computing, also with rapid growth of multi fibers” (MPO) requirement. However, on the site of measurement process, traditional single channel Optical power meter with complex measurement and low

 Specifications:

1 General Information

ST-3224 MPO Optical Power Meter and ST-3124 MPO Optical Light Source is special for testing MPO fiber. At recent years, as the rapid development of data centre and cloud computing, also with rapid growth of multi fibers” (MPO) requirement. However, on the site of measurement process, traditional single channel Optical power meter with complex measurement and low credibility. Based on this, ST-3224 & ST-3124 MPO products arises at this moment. The product can test the insertion loss of MPO fibers and polarity with only one key, And the integration of a variety of data storage, threshold analysis, data export and other applications,Compared with the traditional instrument, the test efficiency of ST-3224 & ST-3124 is more than 10 times,it is the best choice for field application of MPO room test、calibration of production line、Determination of polarity.

2 Key benefits

   12、24、Specific Channels
 High Precision of color LCD display
 100 history data reports
 If there is no operation in 5 mins, the screen will adjust the backlight automatically and enter the power saving mode
 Switch 4 functions interface with one key (single channel optical power meter, 12 channels Optical power meter, MPO testing, Column interface)
 Copy the data to the computer directly with USB interface, which is convenient for user.
 The user can customize the threshold to test
 Built-in 3500 Ma high-capacity lithium battery, work time more than 10 hours
 Humanized operation shape, easy to use.

3  Specifications

ST-3124 MPO
                                      FP LD
Laser Type
                                  850/1300 或  1310/1550
Wave Length
                                0Hz  270Hz  1KHz  2KHz
Frequency
                                 9/125   50/125   62.5/125
Fibertype
                                 SM/MM  MPO/PC 12/24芯母头
Interface Type
                                    > -10dBm
Output Power
                                  ±0.2(15min.) ±0.5(8hours)
Stability


ST-3224 MPO Specification
                                        InGaAs                                                        -5℃~+40℃
Detector                                                             Working Temperature
                                       850~1700nm                                                     -5℃~+40℃
  Wavelength Range                                                     Working Temperature
                                        850&&1300或1310&&1550nm                                            > 10小时
Calibration Wavelength                                                 Continuons Working Hours
                                         +3~-50 dBm                                                        < 850g
Optical Power Meter Range                                              Weight
                                        < 0.2s/通道                                                        12、24 or Special
Insertion Loss Accuracy                                                Channels
                                           0.01dB                                                          220 x 110 x 70mm
Resolution                                                             Outline Dimension
                                   ±0.2dB (+5~-50dBm)
Linearity
                                           USB
System Control
                                       SM/MM MPO/PC 12/24芯母头
Interface Type

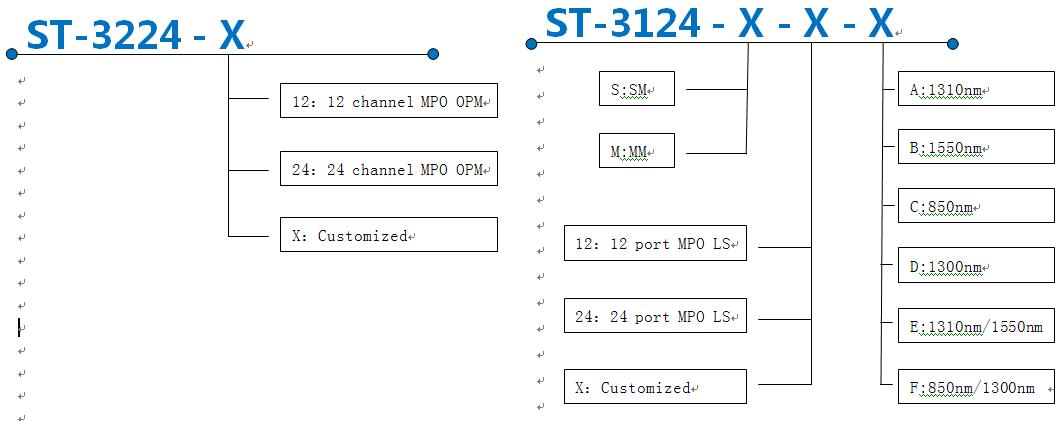

4  Ordering information
