ST-8200 MTPMPO Testing System

ST-8200 MTPMPO Testing System

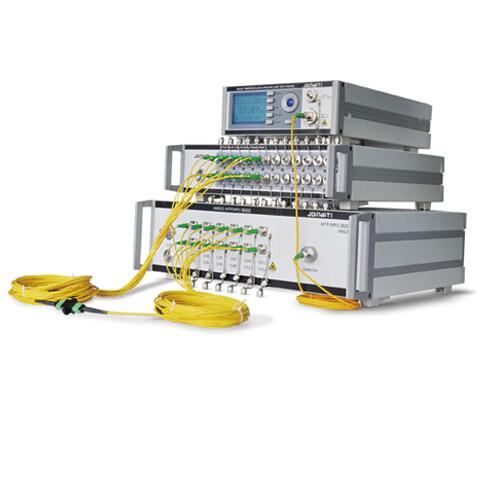

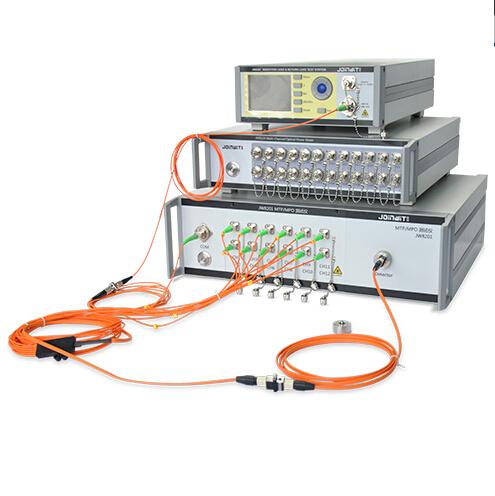

ST-8200 MTP/MPO Testing System is the newest product of Sunma, which is special for testing insertion loss and return loss of Multi core / Ribbon Optical fiber. It combine our winding free IL&RL tester 8307, application software of 8201 and Multi-channels Bench-top Power Meter

 Specifications:




ST-8200  MTP/MPO  Testing  System  is  the  newest product of Sunma, which is special for testing insertion loss and return loss of Multi core / Ribbon Optical fiber. It combine   our   winding   free   IL&RL   tester  8307, application  software  of  8201  and  Multi-channels Bench-top Power Meter 8124, which is able to test Insertion  loss/Return  loss  of  Multi  core  fibers  in  the system. The application of “Winding free” technology is a good solution for Multi core fiber which is not able to wrap  and  with  low  precision,  it  greatly  improves  the efficiency and accuracy of testing IL/RL of Multi core fiber/  Ribbon  fiber. While  the  application  software  of 8201  offer  many  kinds  of  testing  modes,  testing report, threshold sets and so on. It makes the testing smooth and convenient.

Key Features

Winding free of Return Loss test for multi core fiber, no need to match cream
Automatically test IL&RL of 12 Channels with 2 wavelengths(1310/1550nm)
With large area detector to meet the requirement of testing MTP/MPO Products
With 24 channels of Bench-top power meter
Provide independent 8307 Winding free IL/RL Tester, 8201 Multi-Channels Light source And 8124  Multi-channels  power  meter  to  meet  the  testing  requirement  of  different  kinds  of  optical fiber. It has a good compatibility.
USB port to support software application
Variety of testing mode, such as, only Insertion loss mode, only Return loss mode, only 1310
wavelength mode and so on to meet customer’s requirement
Personalization of testing report design to meet user’s demands.

Real No- mandrel RL tester
Real multi-core no-mandrel RL test
RL/IL Display at same time
For SMF and MMF optional
Power range from +5dBm~-85dBm
12-channel dual-wave IL&RL test.
USB to PC software use
Multi test modes,
CE, FCC, FDA certificated

Items



Source Channels

12 or 24

Insertion Loss Source

1310nm1550nm

Return Loss Source

1310nm1550nm

Source Stability

+/-0.02 dB

Optical Power Meter Measurement Range

+3 ~ -60 dBm

Insertion Loss Accuracy

+/- 0.05dB

Return Loss Range

13 ~ 70 dB

Return Loss Accuracy

+/-1dB

System Control port

USB port
