It is designed specially for applications of Fiber Optic Sensor System,Fiber Optic gyroscope,laboratories and other peculiar applications area.Comparing with the normal broadband light sources,SLED broadband light source features higher optical output power and wider covering spectrum.The key elemen

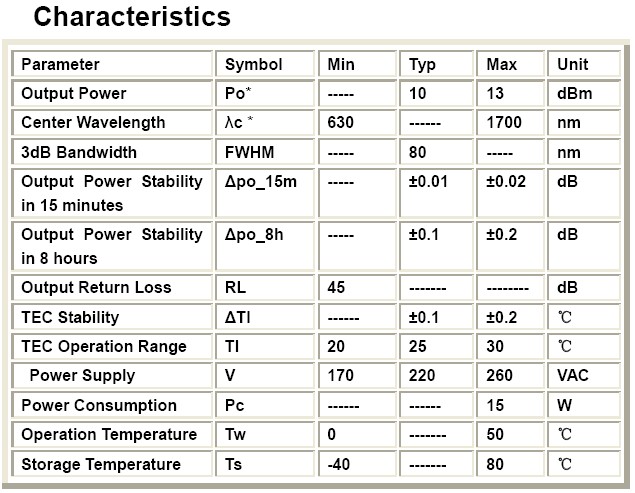

Specifications:

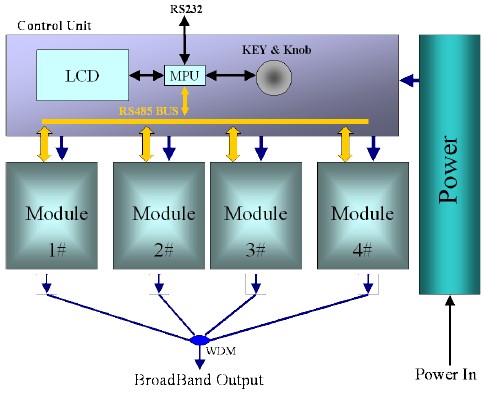

ST-3700 SLED Broadband Light Source It is designed specially for applications of Fiber Optic Sensor System,Fiber Optic gyroscope,laboratories?and other peculiar applications area.Comparing with the normal broadband light sources,SLED broadband light source features higher optical output power and wider covering spectrum.The key element of light source adopts SLED laser which with features of 3dB bandwidth and more than 40nm optical output power.By particular circuit integration,it can contain multiple SLED lasers so that to ensure the flatness of output spectrum. Inimitable ATC and APC circuit to ensure the stability of output power. The output power can be adjustable in a certain range by operation of APC adjustment. Features Hight output power, the max. power can be 100 mw. Superior wide operating bandwidth, the max. can reach 1200~1700nm(500nm bandwidth) Excellent flatness within spectrum range Intelligent micro processing system and remote control Digital LCD display; Easy operation High stability and reliability High Accurate ATC and APC control electrocircuit Application Manufacturing and Testing of Optical Passive Components Optical Sensor System Optic Fiber gyroscope Lab Testing and Fiber Optic Sensor System Other Fiber Engineering |
