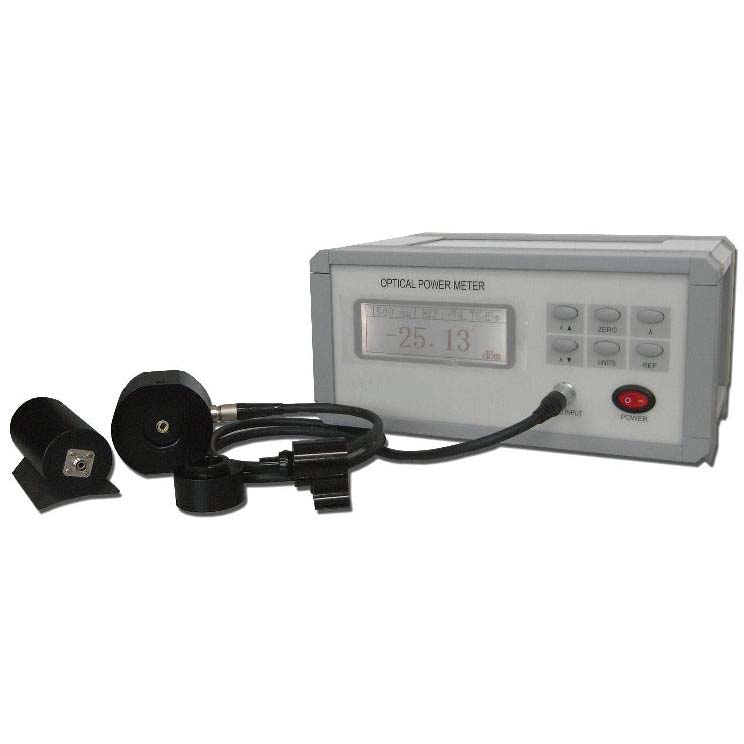

ST-3201N Bench-top Optical Power Meter

ST-3201N Bench-top Optical Power Meter

It is a test instrument with a high precision and wide measurement range developed by us and designed for the factory and the research and development institution, It got the features of easily for operation, precious testing result, and durable to use, ST3201N is an ideal testing instrument which c

 Specifications:

ST-3201N Bench-top New Optical Power Meter

It is a test instrument with a high precision and wide measurement range developed by us and designed for the factory and the research and development institution, It got the features of easily for operation, precious testing result, and durable to use, ST3201N is an ideal testing instrument which can instead the advanced imported products and with the better cost-performance ratio.

Product Feature

 External detector makes the testing operation more convenience.
 The adjusted wavelength between 850-1700nm。
 High precious sensitive, the uncertainty is±3%
 Display resolution 0.01dB
 Power range +5~-75dBm,can choose the measurements customized
 Adopt the new data collection technical, to make high signal-to-noise ratio.
 Provide R232 communication function, to realize the safe monitoring without people, and save the data automatically.
 Use the bare fiber clamp to realize the bare fiber power meter test.



 photosensitive 2.0mm  0dB InGaAs detector
 The matching clamp for bare fiber Calibration  can install various detector according with the clients needs



 Photosensitive encapsulation with size of 3*4mm 0dB TO detector
 The matching clamp for bare fiber Calibration  Can install various detector according with the clients

The matching clamp for bare fiber

ST-430 bare fiber clamp have a V sharp slot, the bare fiber can pull in and out and orientation repetitionary. And it can protect the fiber against the pressure from outside, to avoid the fiber tortuosity that cause the polarization dependent loss. JW-430 can fully encircle the bare fiber, to against the surrounding light come into the fiber, to make the test result more preciously.



Model

ST3201N

Adjusted wavelength(nm)

85098013001310

1480149015501625

Wavelength range (nm)

8501700

Detector type

InGaAs

Testing RangedBm

+5-75

Uncertainty

±3%

Display resolution dB

0.01

Operation Temperature()

-10~+40

Storage temperature()

-25+70

Power supply

AC90260V50Hz

Weight(kg)

2.75

Dimension(mm)

260*190*120




















Model

Standard package list

ST3201N1 Bench-top precious power meter

Power Meter

ST3201N1 horizontal detector

RS232 data transfer cable

Power supply Adaptor

Software CD

Cotton Tampon

User Manual

Grantee card

ST3201N2 Bench-top precious power meter

Power Meter

ST3201N1 horizontal detector

RS232 data transfer cable

Power supply Adaptor

Software CD

Cotton Tampon

User Manual

Grantee card
