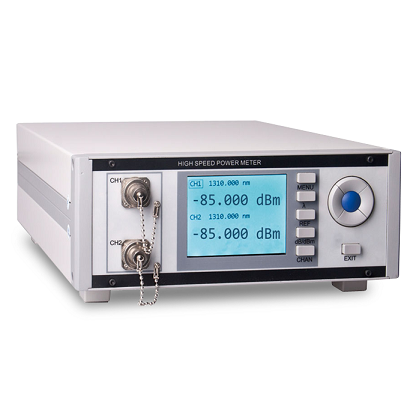

ST-8103 desktop dual channel high-speed optical power meter is according to the latest optical power testing needs, combined with the technical features of domestic and overseas optical power meter and the development of optical test equipment; the double channel high speed optical power meter has t
Specifications：
| ST-8103 Dual-channel High Speed Optic Power Meter ST-8103 desktop dual channel high-speed optical power meter is according to the latest optical power testing needs, combined with the technical features of domestic and overseas optical power meter and the development of optical test equipment; the double channel high speed optical power meter has the advantages of the fast sampling rate (reach 51200 sampling points per second) and fast settling time, greatly improves the test efficiency; provide large area InGaAs detector and various adapters, to make it applicable to the bare optical fiber environment and dynamic range test; provides a more comprehensive menu setting function for various test cases. Features: 1: the wavelength of each 5pm can be adjusted; 2: the highest sampling rate: 50KSPS; 3: the maximum external rate: 10KHz; 4: to provide external synchronous trigger and single trigger sampling function; 5: to provide the maximum value of automatic search mode (PDL mode); 6: to provide dual channel automatic ratio calculation (UNI mode) 7: up to 30 user defined calibration wavelengths; 8: rich menu set content, more comprehensive system function; 9: optical power detection is as low as -85dBm; Application: - The production and research of optical devices - Fiber optic sensing research - optical fiber CATV project - Optical fiber communication engineering - other optical fiber engineering
The dual channel high speed optical power meter uses InGaAs as the detecting element, which can test the light source power of 850~1700nm wavelength. For other test wavelengths, the user can refer to other products of this series. The high-speed optical power meter with a diameter of 2mm large detector, the user can refer to this series of other products or contact me, if the detector area is required. The linearity index is measured at room temperature of 20~25, and the average time is set to 100mS. The total uncertainty at 20~25 DEG C at room temperature, the power detection range of +5~-65dBm, the use of standard light source repeat test. Fifthly, the highest sampling rate is refers to in the high speed optical power meter in the gear set in +5~-30dBm. The highest sampling rate of the input optical signal can be. The high speed optical power meter power measurement range for +5~-85dBm. But in when the sampling rate is high dynamic range is +5~-60dBm, high-speed sampling refers to the sampling rate is set at a rate greater than and equal to 1KSPS. The frequency response is to detect the modulated optical signal in high speed optical power meter, need to be set in the corresponding range of detection power. The total noise in optical signal input, the maximum sum of internal noise. The uncertainties of the passage is in 20 to 25 DEG C at room temperature, the input range of the light signal in the +5~-60dBm, two channels of repeated testing the maximum deviation value. Packing List: 1 dual channel high speed optical power meter main machine 1 sets 2 FC 2.5\, Phi Phi 1.25 adapter (optional) 2 3 SMA to BNC line 2 4 SMA (M-M) line 2 5 USB line 1 6 power cord 1 7 CD CD 1 |
