Lastest AFL FlexScan OTDR with SmartAuto and LinkMap Pocket-sized, Performance-packed, User-friendly, and Affordable, Fast, accurate SmartAuto OTDR network characterization orfault location Easy to understand LinkMap results with pass/fail indications

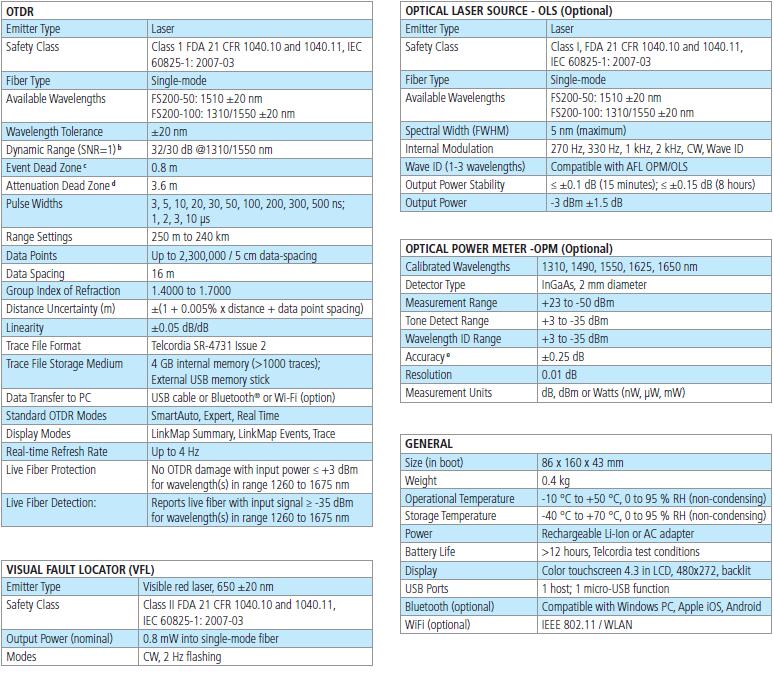

Specifications:

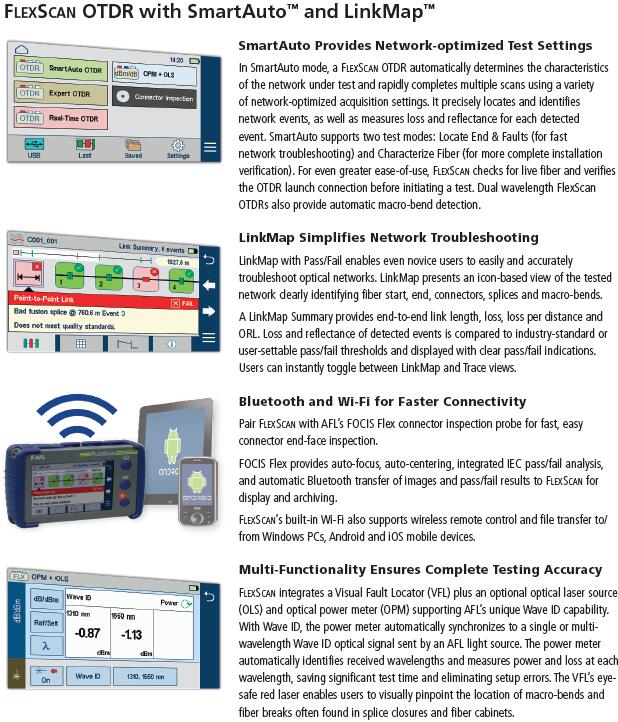

FlexScan OTDR with SmartAuto and LinkMap Pocket-sized, Performance-packed, User-friendly, and Affordable FlexScan OTDRs enable both novice and expert technicians to quickly and reliably troubleshoot optical networks or fully characterize newly installed or repaired networks. Using FlexScan抯 innovative SmartAuto mode, multiple OTDR scans quickly and accurately detect, locate, identify and measure network components and faults. After applying industry-standard or user-set pass/fail criteria, the characterized network is displayed using FlexScan抯 intuitive, icon-based LinkMap view. FlexScan automates test setup, shortens test time and simplifies results interpretation, improving efficiency and reducing the cost of test. Acquired results may be stored internally or externally. Internally stored results are easily accessed via USB, Bluetooth or WiFi. With optional connector inspection, integrated source, power meter and VFL, FlexScan offers an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Designed for field use, FlexScan is robust, rugged, lightweight, powerful and flexible. Features Fast, accurate SmartAuto OTDR network characterization or fault location Easy to understand LinkMap results with pass/fail indications 1550 nm only version for cost-effective troubleshooting 1310/1550 nm version for complete network characterization Alerts users to live fibers and poor launch conditions Integrated Source, Power Meter, VFL (visual fault locator) Bluetooth and Wi-Fi communications Compatible with FOCIS Flex connector inspection system Rugged, lightweight, hand-held for field use Large, bright touchscreen display easily viewed indoors and out Internal / external data storage via USB, Bluetooth, or Wi-Fi 12-hour Telcordia battery operation Applications Optical network installation, troubleshooting and maintenance OTDR testing plus Insertion Loss and Power measurements Locate faults exceeding industry or user pass/fail thresholds Visually pinpoint location of macro-bends or breaks inside cabinets and splice closures |
