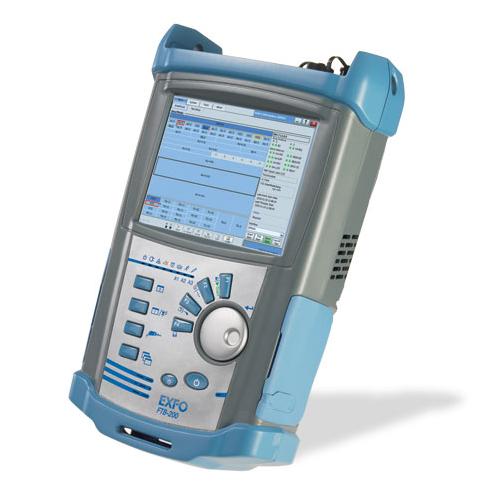

EXFO FTB-200 Compact Platform

EXFO FTB-200 Compact Platform

A compact, modular platform designed for multilayer and multimedium testing ● Tests physical, transport and datacom ● Accommodates two field-interchangeable modules ● Integrated hardware options such as visual fault locator (VFL), ber inspection probe and power meter

 Specifications:

The Compact Platform FTB-200

 A compact, modular platform designed for multilayer and multimedium testing
 ● Tests physical, transport and datacom
 ●
Accommodates two field-interchangeable modules
 ●
Integrated hardware options such as visual fault locator (VFL),
    ber inspection probe and power meter

Designed for metro/access and FTTx networks
 ● Lightweight construction
 ●
Touchscreen resistant to shock, water, dustand common chemicals
 ●
Dial and shortkeys for easy scrolling and selecting
 ●
Meets GR-196-CORE standards
 ● Extended battery life of more than 8 hours, perfect for OTDR testing

Improved productivity
4-second power-up time with Windows CE
Faster acquisition, processing and reporting
Instantaneous AutoSync USB for file transfer and software upgrades
USB A/B and RJ-45
● Compact Flash (memory, Wi-Fi and Bluetooth)

Optimized for all phases of the network lifecycle
  ● Construction/installation
  ●
System provisioning/service activation
  ● Maintenance/troubleshooting

Compatible with the following modules

World-renowned FTB-7000 OTDR B/C/D series
 ● Up to four wavelengths
 ●
Industrys fastest acquisition times
 ●
Shortest dead zones in the industry
 ● Singlemode and multimode testing

FTB-8120/8130 Transport Blazer Test modules
Available with Next-Gen SONET/SDH hardware
 ● FTB-8120: DS1/E1 to OC-48/STM-16 interfaces in a single module
 ● FTB-8130: DS1/E1 to OC-192/STM-64 interfaces in a single module

FTB-8510 Packet Blazer Ethernet Test Module (available in Q2)
 ● Ethernet-based packet services testing with wire-speed full-duplex 10, 100 or
 1000 Mb/s traffic-generation capabilities
 ● All the T&M functionalities to meet service-level agreements (SLA) with customers


Fully automated bidirectional loss tests in seconds for up to three wavelengths;
 automatic ORL and fiber-length measurements
 ●
Combines 8 functionalitites in a single module.
      ◎ Loss meter
      ◎ Power meter

Optical return loss (ORL) meter

Visual fault locator

Multimode and singlemode light sources

Digital talk set
      ◎
Fiber-length meter

Specifications:




Display

Touchscreen, color, 640 x 480 TFT 163 mm (6.4 in)

Interfaces

USB A main
USB B remote
RJ-45 LAN 10/100 Mb/s
Compact Flash
Fiber inspection probe connector port (video)

Storage

Internal 80 MB (Flash)
USB sticks 1 GB and 2 GB (optional)
Compact Flash cards (optional)

Batteries

Rechargeable Li-Ion
8 h of operation as per Bellcore TR-NWT-001138

Power Supply

AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output: 24 VDC, 90 W



GENERAL SPECIFICATIONS

Temperature

Operating

-5 ℃ to 50

Storage

-40 to 70

Relative humidity

0 % to 95 % non-condensing

Size (H x W x D)

  322 mm x 197 mm x 109 mm   (12 11/16 in x 7 3/4 in x 4 5/16 in)

Weight

2.5 kg (5.4 lb)

Vibration

< 1.5 g at 10 Hz to 500 Hz  (on three main axes)

Mechanical shock

< 760 mm on six sides and eight main edges (according to GR-196-CORE)



ACCESSORIES

FP1

FP1 200X Fiber Inspection Probe



GP-2017

Spare FTB-200 battery

FP5

FP5 400X Fiber Inspection Probe

GP-2019

USB micro drive standard capacity

GP-10-069

Semi-rigid FTB-200 carrying case

GP-2021
(A-E-I-J-S-U)

Spare AC charger (requires AC external adapter/charger). Specify: A-North America, E-Europe, I-India, j- Japanese,S-Australia and New-Zealand, U-United-Kingdom

GP-302

USB mouse

GP-308

DC car adapter/inverter

GP-2001

USB keyboard

GP-2011

Compact Flash Ethernet WiFi card

GP-2023

Spare neck strap

GP-2012

Compact Flash Bluetooth card

GP-2024

Spare belt strap

GP-2014

<P, class=MsoNormal align="left">Compact Flash memory 1 GB card



GP-2025

Spare battery door

GP-2015

Compact Flash memory 2 GB card

GP-2027

Portable printer

GP-2016

10 feet RJ-45 LAN cable

GP-2028

Computer security cable kit
