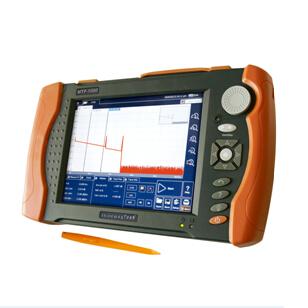

MTP-1000 OTDR Test Platform

MTP-1000 OTDR Test Platform

MTP-1000 is a compact modular platform with up to 3 functional modules, which is specially designed for FTTx/PON applications and can meet all test requirements of installers, contractors and service operators during network installation, service activation, maintenance and troubleshooting.

 Specifications:

MTP-1000 is a compact modular platform with up to 3 functional modules, which is specially designed for FTTx/PON applications and can meet all test requirements of installers, contractors and service operators during network installation, service activation, maintenance and troubleshooting.

Designed for Metro, Access & FTTx Networks

 Flexible wavelength configurations to meet different requirements
 FTTX in-service test (1625nm with filter)
 PON OTDR tests through splitter (≥1×64), splitter & fiber-end identifiable
 Pass-through PON Power Meter simultaneously measures Triple-play PON signals (1310/1490/1550nm)
 Visible Fault Locator fast locates    defective connectors, faults in macrobends, patch cords and patch cord panels
 Remote/local control by PC
 Optical Connector Inspector checks connector & fiber termination for polish quality & cleanliness


Optimized Platform Performance

 Lightweight
 8.4 inch touch screen
 Excellent Man-Machine interface for easy operation
 Damp-dust-shock proof
 Knob and touchpen combination: Fast and easy handling
 Optimized power management: 7 hours continuous operation
 Fast power up with Windows CE

Flexible Test in PON Architecture

MTP-1000 can perform real-time test anywhere in the network for FTTx/PON installation,   activation and maintenance.

Platform

Display

8.4 inch TFT Touch Screen (800×600)

Connectivity

USB×2; 10/100Mbit/s RJ-45×1

Memory

2GB

Power Supply

Li-Ion Battery/AC Adapter

Battery Life

7 hours continuous operation

Weight

2.1kg (Platform only)

Dimensions (H×W×T)

320×190×70mm (Platform only)

OTDR Module

Wavelength (±20nm)

Dynamic Range (dB)

 EDZ(m)

    ADZ(m)

MOT200-20VD

1310/1550

45/43

1.5

10

MOT200-30VC

1310/1490/1550

38/37/37

1.5

 12

MOT200-31VC

1310/1550/1625

38/37/37

1.5

 12

MOT200-33VC

1310/1550/1650

38/37/37

1.5

 12

MOT200-40VC

850/1300/1310/1550

26/32/38/36

     1.6

8/9/10/12

MOT200-41VC

1310/1490/1550/1625

38/37/36/36

1.5

 12

Selectable Range

1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km

Pulse Width

5ns,10ns,30ns,100ns,300ns,1µs,2.5µs,10µs,20µs

Averaging Time

Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s

Emitter Type

LD

Connector

FC/PC (Interchangeable SC, ST)

Distance Measure Accuracy

±(1m + 10-5×distance + sampling space)

Attenuation Detect Accuracy

±0.05 dB/dB

Reflection Detect Accuracy

±4 dB

Visible Laser Source

     Output Power ≥ -3dBm; MOD Frequency: 1Hz; Detecting Range: 5Km

MCI100 Optical Connector Inspector Module

Field of View

400µm×300µm

Resolution

≤1.5µm

Focusing

Manual Focus

Hand Probe Dimensions

Ø32×175mm

MPN200 General Loss Tester Module: PON Power Meter

CAL Wavelengths

1310

1490

1550

Measurement Range

-40 ~ +10dBm (1)

-40 ~ +12dBm

-40 ~ +20dBm

Spectral Passband

1310±50nm

1490±15nm

1550±10nm

Power Uncertainty

≤ 0.5dB

Display Resolution

0.01dB

Insertion Loss

≤ 1.5dB

MPN200 General Loss Tester Module: Stabilized Laser Source

Wavelength

1310,1490,1550,1625nm (±20nm)

Emitter Type

FP-LD@1310,1490,1550nm; DFB-LD@1625nm

Output Mode

CW, 270Hz,1KHz,2KHz

Spectrum Width

≤5nm

Output Power

≥ -3dBm

Power Stability

±0.05dB/15min; ±0.10dB/8hr

Connector

   FC/PC (Interchangeable SC, ST)

MPN200 General Loss Tester Module: Optical Power Meter

CAL Wavelength

850,1300,1310,1490,1550,1625nm

Power Range (dBm)

-70~+10(2)

-50~+27

Accuracy

±5%±0.01nW (±0.5dB@850nm)

±5%±1nW (±0.5dB@850nm)

Detector Type

InGaAs

MOD Identification

270,1K,2K Hz

Resolution

0.01dB

Connector

FC (Interchangeable SC, ST)
