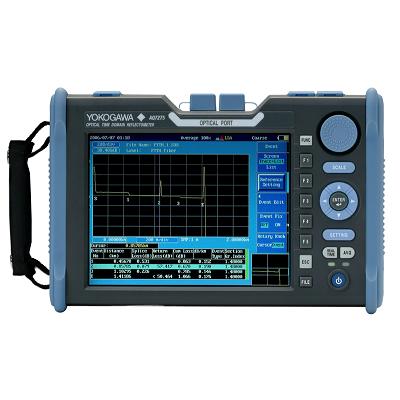

YOKOGAWA AQ7275 OTDR

: OTDR; Hits: 1313

Specifications：

The AQ7275 Optical Time Reflectometer (OTDR), is ideal for use in a wide variety of optical fiber installation and maintenance applications. Increased efficiency and a quick start-up help to maximize time spent on operations. With the 10-second startup, the AQ7275 is ready to perform when you are. Improvements to this generation of Optical Time Domain Reflectometer offer a better variety of options and greater value for our customers.The best outcome of our improvements: Enhanced Measurement Performance.

Yokogawas Optical Time Reflectometer has improved to suit your changing needs:

Wide Range of Modules Available
Supporting FTTH to Metro, Core Network
High Dynamic Range (45dB)
Short Dead Zone (0.8 m)

Wide Range of Modules Available

Applicable Fiber	No. of Wavelengths	Wavelength	Dynamic Range	Model	Descriptions
SMF	1	1650nm	30dB	735031-New	1650nm model, supporting maintenance wavelength of 1650nm including 1310/1550nm cut filter.
	2	1310/1550nm	34/32dB	735032	Standard model for installation and maintenance of FTTH
	2	1310/1550nm	40/38dB	735033	Standard model for installation and maintenance of Metro and Access network
	2	1310/1550nm	43/41dB 45/43dB(typ.)	735034-New	High dynamic range model for installation and maintenance of Core and Metro network
	3	1310/1490/1550nm	34/30/32dB	735035-New	3-wavelength model for PON system, supporting 1490nm
	3	1310/1550/1625nm	40/38/33dB	735036-New	3-wavelength model, supporting a maintenance wavelength of 1625nm including 1310/1550nm cut filter
	3	1310/1550/1650nm	40/38/30dB	735037	3-wavelength model, supporting a maintenance wavelength of 1650nm including 1310/1550nm cut filter.
	3	1310/1550/1625nm	40/38/36dB	735038-New	3-wavelength model, supporting a maintenance wavelength of 1625nm
MMF SMF	4	850/1300 nm 1310/1550 nm	22.5/24 dB(62.5GI) 21/22.5dB(50GI) 40/38 dB(SM)	735041-New	4-wavelength model for installation and maintenance of LAN and FTTH with support for both multimode and single mode fiber. Dynamic range is specified when measuring 50GI fiber.

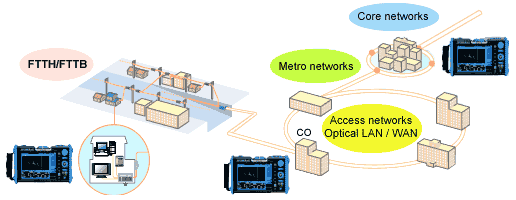

Meets a broad range of measurement needs from FTTH to Metro, Core network.
Tm Aq7275 04 1

Event Dead Zone 0.8 m

Accompanying the rapid proliferation of FTTH is a growing need for detection of reflective events arising from short distance mechanical connections. The AQ7275’s short event dead zone enables detection of closely spaced events in cables installed in offices and customer premises.

High Dynamic Range up to 40 dB

The newly added 3-wavelength model (735037) and 4-wavelength model (735040) can achieve the dynamic range of 40 dB. This high dynamic range is effective in measuring a transmission line consisting of long fiber cables and a splitter with a large loss.

Quick Startup within 10 Seconds

Now measurements can be started quickly upon arrival at the site. 10 seconds to power-up from completely OFF to fully ON! With such a fast power-up time, battery life can be extended by turning the power off while not in use at the job site without any concern about the power-up time when the next job is ready. It’s ready when you’re ready!
